(1.25.0/01[02]) - CLUTCH - FOR STRADDLE VERSION

Запчасти Case IH JX55 (1.25.0/01[02]) - CLUTCH - FOR STRADDLE VERSION (03) - TRANSMISSION

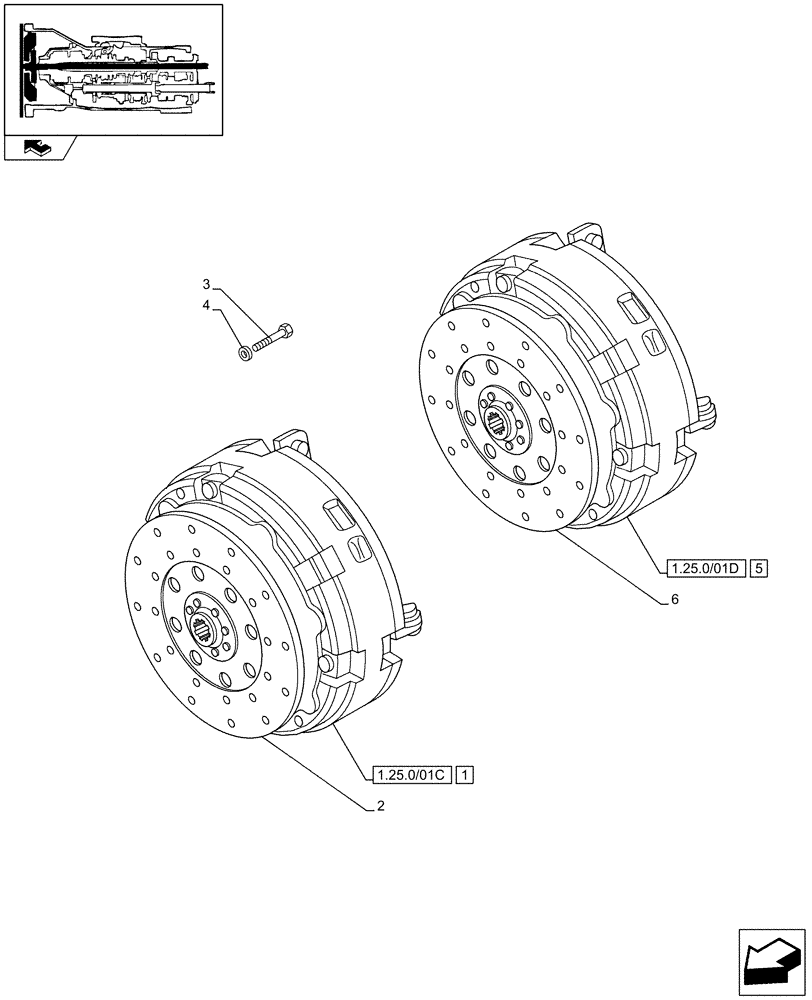

Схема запчастей Case IH JX55 - (1.25.0/01[02]) - CLUTCH - FOR STRADDLE VERSION (03) - TRANSMISSION
3
2
4
6
1
1.25.0/01d
home
5
1.25.0/01c
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5171137

CLUTCH,335mm OD

JX55, JX65

1шт.

1

5162897

CLUTCH & DISC ASSY

JX75

1шт.

1

5162900

CLUTCH,335mm OD

JX85

1шт.

2

5154703

CLUTCH PLATE,280mm OD

JX55, JX65, JX75, JX85

1шт.

3

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

6шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

5

84177332

CLUTCH & DISC ASSY,360mm OD

JX95

1шт.

6

84177335

CLUTCH PLATE,310mm OD

JX95

1шт.
