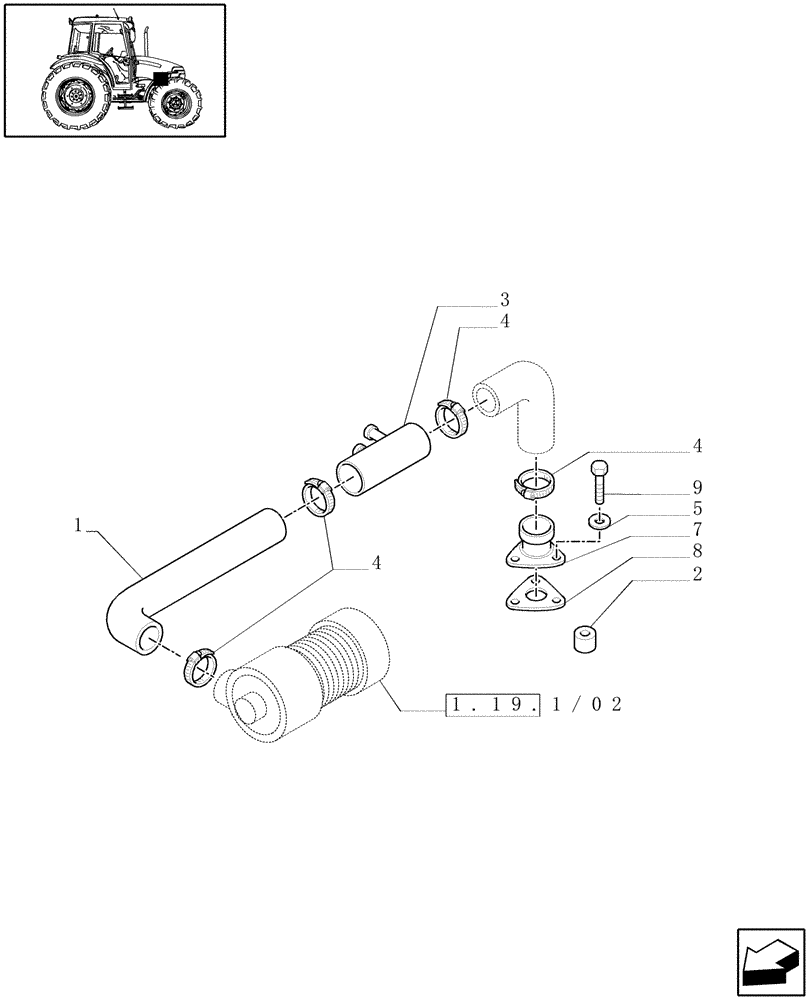

Запчасти Case IH JX55 (1.19.1/01[08]) - (VAR.189) AIR FILTER - AIR CLEANER PIPING (02) - ENGINE EQUIPMENT

1

5097347

HOSE

1шт.

2

5097155

SPACER

2шт.

3

5094850

PIPE

1шт.

4

5085782

CLAMP

4шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

6

5085776

HOSE CLAMP

2шт.

7

5168120

FLANGE

1шт.

8

98418533

GASKET,0.8mm Thk

1шт.

9

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.
