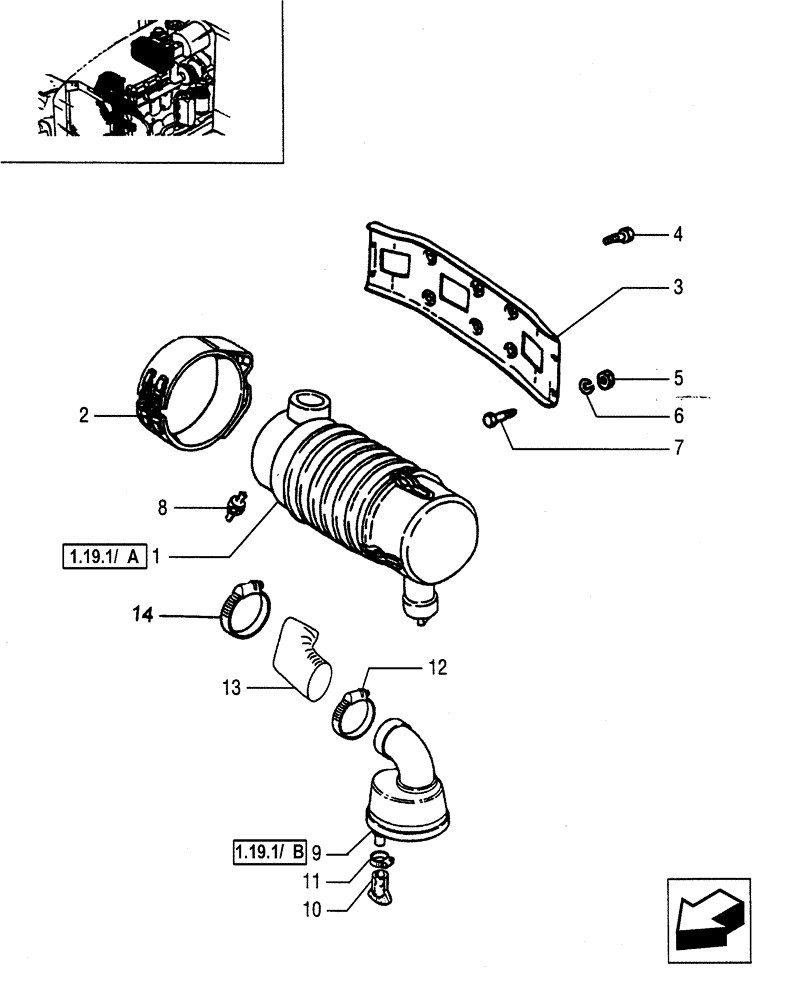

Запчасти Case IH JX55 (1.19.1[01]) - DRY AIR FILTER - BRACKETS AND COLLARS (02) - ENGINE EQUIPMENT

1

5157064

AIR FILTER

1шт.

2

5157880

BRACKET

1шт.

3

5094792

SUPPORT

1шт.

4

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

6

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

5138821

INDICATOR

1шт.

9

4997662

AIR PRE-CLEANER ASSY

1шт.

10

599501

HYDRAULIC VALVE

1шт.

11

5085776

HOSE CLAMP

22 x 36

1шт.

12

5085782

CLAMP

1шт.

13

5094505

ELBOW,60mm ID x 380mm L

1шт.

14

5091614

COLLAR

1шт.
