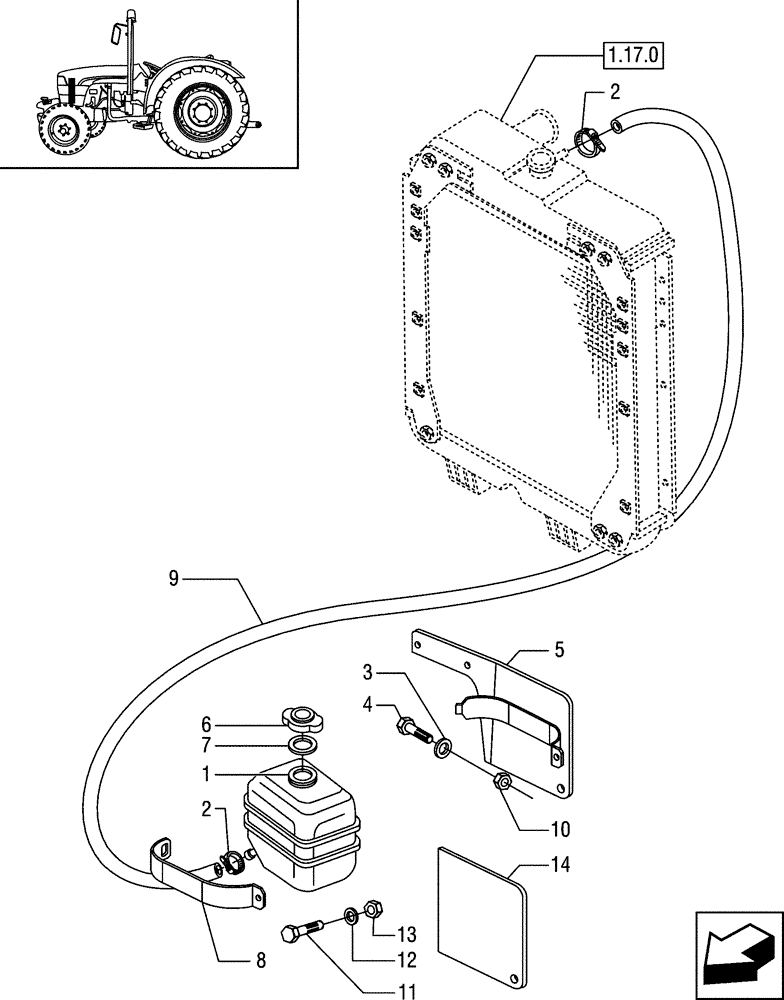

Запчасти Case IH JX55 (1.17.1/01) - COOLING TANK - FOR STRADDLE VERSION (02) - ENGINE EQUIPMENT

1

5097071

TANK

1шт.

2

10186590

CLAMP,11mm - 13mm

2шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

5097039

SUPPORT

1шт.

6

4274034

CAP

1шт.

7

4153008

SEAL

SEALRING

1шт.

8

5097262

CLAMP

1шт.

9

5097041

HOSE

1шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

11

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

12

10571579

LOCK WASHER,M6

1шт.

13

15896211

NUT,M6, Cl 8

1шт.

14

5097040

SHIELD

1шт.
