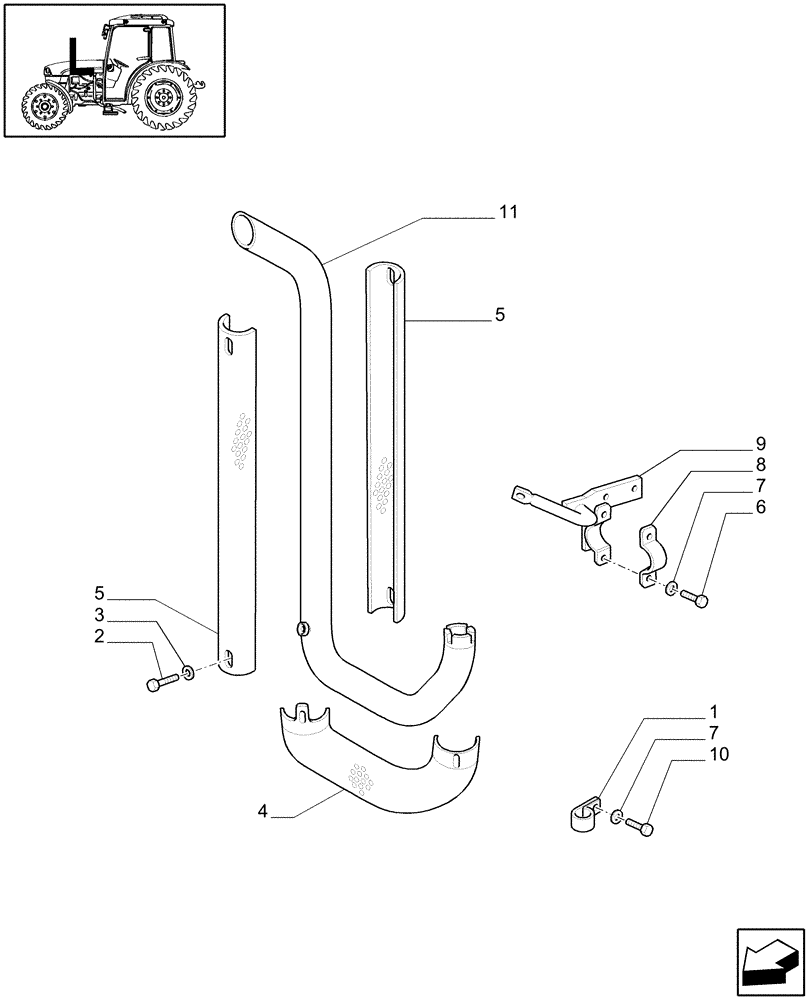

Запчасти Case IH JX1070C (1.15.1/01) - (VAR.134) VERTICAL SILENCER - GUARD (02) - ENGINE EQUIPMENT

1

5170258

COLLAR

1шт.

2

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

5шт.

3

14496404

WASHER,M6 x 12 x 2 Thk

5шт.

4

47133694

GUARD

1шт.

5

47133695

GUARD

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

47128046

CLAMP,59mm ID

1шт.

9

47133721

BRACKET

1шт.

10

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

11

47130709

EXTENSION

1шт.
