Запчасти Case IH JX1070C (1.92.75/10) - (VAR.065-066) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB

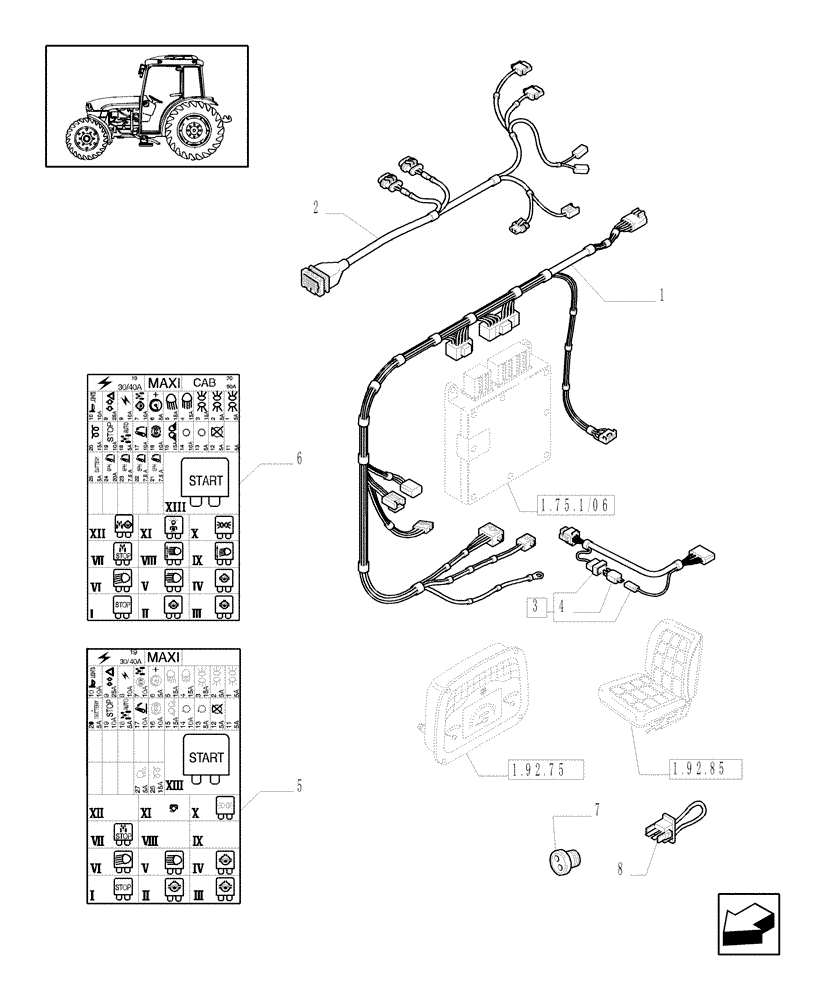

Схема запчастей Case IH JX1070C - (1.92.75/10) - (VAR.065-066) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB
7
.
1
8
1
3
5
6
7
.
2
1
5
06
75
92
8
.
4
/
.
5
92
.
1
.
1

Артикул

Название

Примечание

Количество

1

47133588

ELECTRIC CABLE

, Serial Range: -C5294

1шт.

Power Shuttle Dashboard Harness

1шт.

1

87369838

ELECTRIC CABLE

, Start Serial: D5294

1шт.

Power Shuttle Dashboard Harness

1шт.

2

5191058

ELECTRIC CABLE

1шт.

Power Shuttle Transmission Harness

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit

1шт.

Seat Safety Circuit

1шт.

4

83929594

DIODE

1шт.

5

47129973

DECAL

Fuse, L/CAB, VAR. 065

1шт.

6

47129932

DECAL

Fuse, W/CAB

1шт.

7

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

8

5187976

BRIDGE

1шт.

Выбрано товаров: 13
