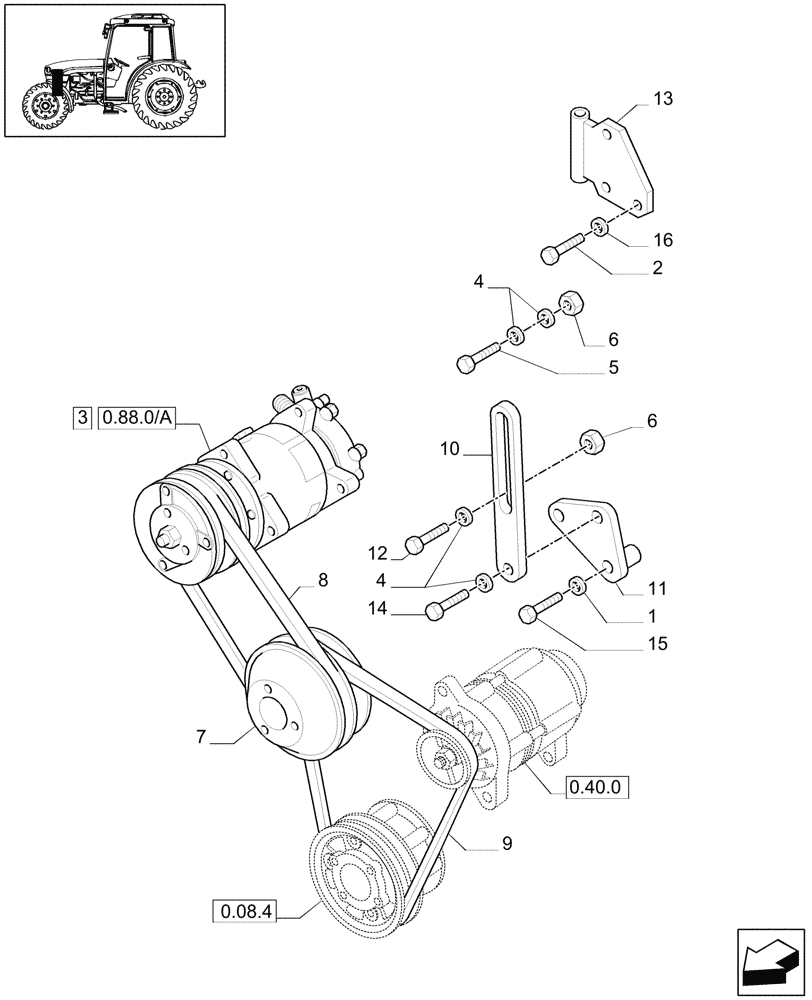

Запчасти Case IH JX1070C (0.88.0[01]) - (VAR.577-608) AIR CONDITIONING - COMPRESSOR (01) - ENGINE

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

2

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

3

5176185

AIR COMPRESSOR

1шт.

5176185R

REMAN-COMPRESSOR

1шт.

JX1070C, JX1075C BOTH (12/03-6/08), JX1060C (12/03-6/08)

1шт.

5176185C

CORE-COMPRESSOR

Return Number

1шт.

4

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

7шт.

5

15972121

SCREW,Hex, M10 x 1.25 x 115mm, Cl 8.8

1шт.

6

12164714

NUT,M10 x 1.25, Cl 8

2шт.

7

5176523

PULLEY,152mm OD

WATER PUMP

1шт.

8

5154152

BELT,13.00 mm W x 875.00 mm L

1шт.

9

47137503

BELT,1175.00 mm L

1шт.

10

5177011

BRACKET

1шт.

11

5177005

BRACKET

1шт.

12

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

13

5177002

SUPPORT

1шт.

14

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

15

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

2шт.

16

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.
