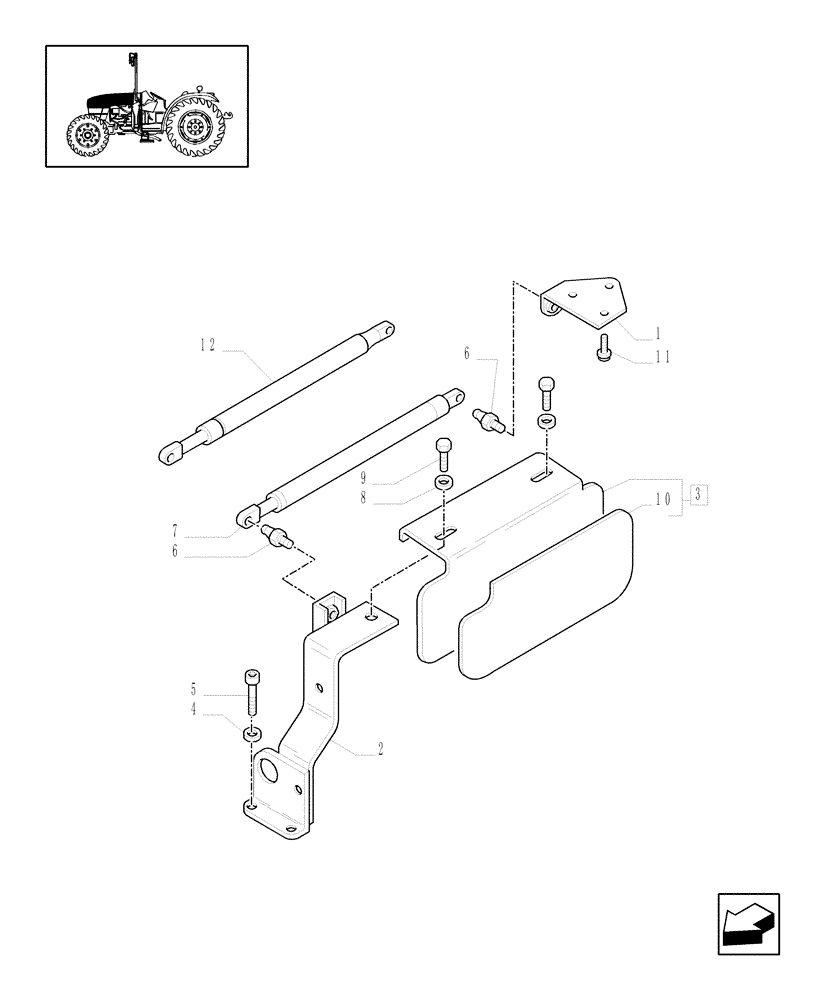

Запчасти Case IH JX1070C (1.83.0[03]) - HOODS (08) - SHEET METAL

1

47130477

SUPPORT

1шт.

2

47132301

SUPPORT

1шт.

3

5188675

SUPPORT

1шт.

4

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

5

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

2шт.

7

47132448

SHOCK ABSORBER

, Serial Range: -HJH073008

1шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

9

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

5188673

GUARD

1шт.

11

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

M8x14

1шт.

12

47128566

GAS STRUT

, Start Serial: HJH073009

1шт.
