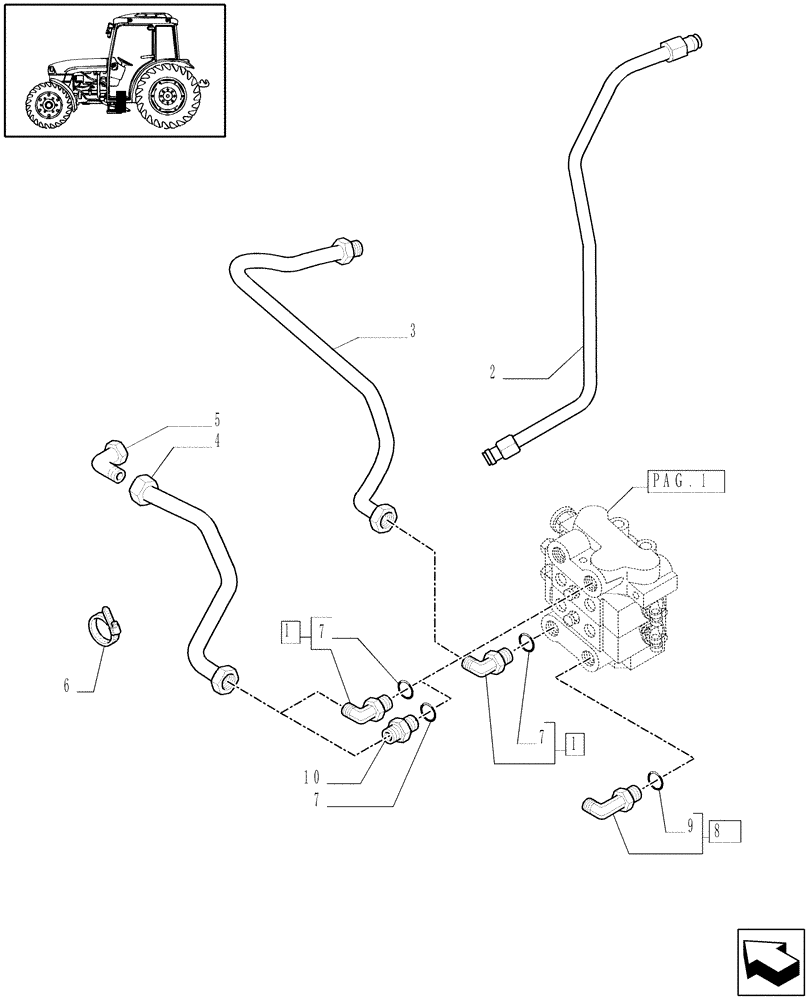

Запчасти Case IH JX1070C (1.82.7/08[04]) - (VAR.125) 2 CONTROL VALVES WITH JOYSTICK FOR TRAILER BRAKE VALVE - C5484 (07) - HYDRAULIC SYSTEM

1

5148919

ELBOW

M22x1.5, 1-1/16-12

2шт.

Qty. 1 After Date 27/06/05

1шт.

2

47130285

RIGID TUBE

1шт.

3

47126969

RIGID TUBE

1шт.

4

87312679

RIGID TUBE

Delivery, Start Serial: D5122

1шт.

4

47126982

RIGID TUBE

Delivery, Serial Range: -C5122

1шт.

5

47128974

HYD CONNECTOR

1шт.

6

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

8

47128049

HYD CONNECTOR

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

10

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1,5, Start Serial: D5122

1шт.
