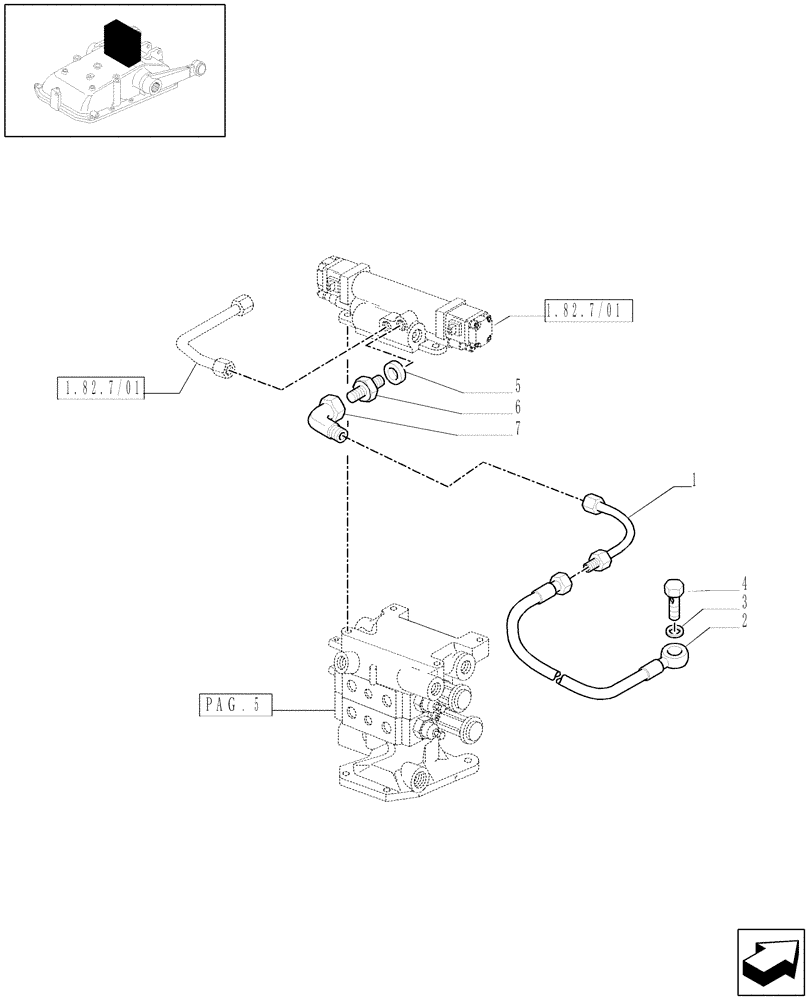

Запчасти Case IH JX1070C (1.82.7/07[08]) - (VAR.136) 2 REMOTE VALVES FOR EDC - PIPES - D5484 (07) - HYDRAULIC SYSTEM

1

47131635

RIGID TUBE

REAR PILOT

1шт.

2

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

1110 MM

1шт.

Front Pilot Hose

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

D=12

1шт.

4

84196125

BANJO BOLT,Hex, M12 x 1.5

1шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1/2"

1шт.

7

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.
