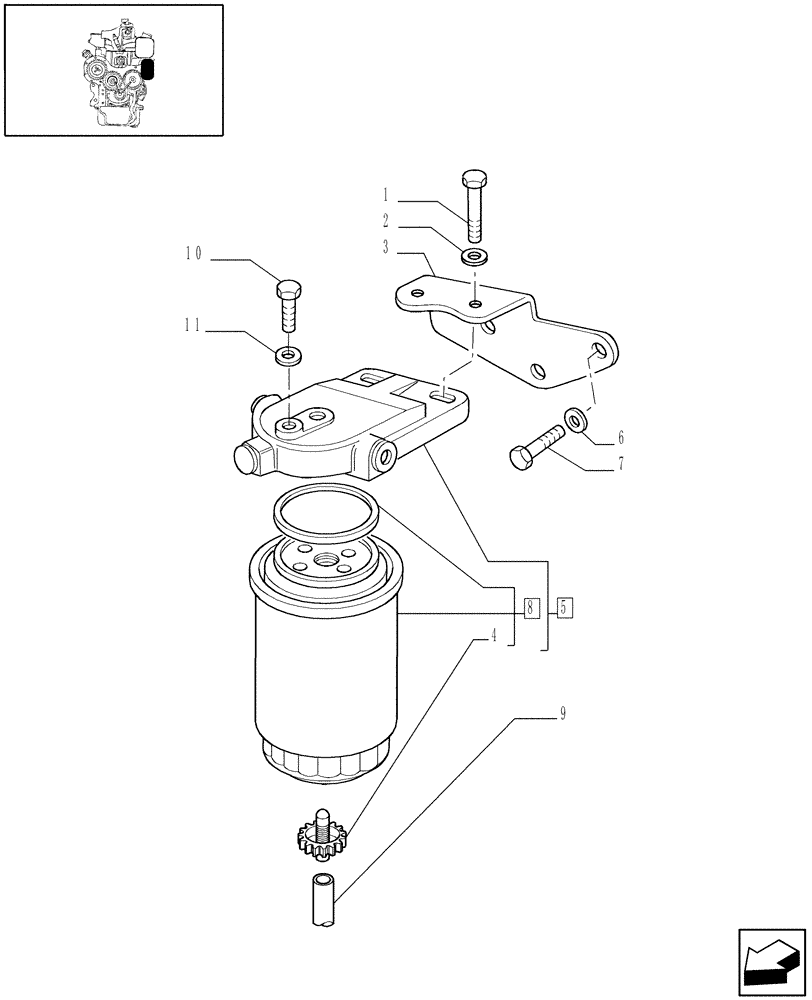

Запчасти Case IH JX1070C (0.20.0) - FUEL FILTER (01) - ENGINE

1

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

2

12626001

WASHER,10.2mm ID x 22mm OD x 3mm Thk

2шт.

3

504047457

BRACKET

1шт.

4

7984634

SCREW

1шт.

5

98439682

FUEL FILTER

ASSY

1шт.

6

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

3шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

8

84214564

FUEL FILTER

1шт.

9

5180490

TUBE

1шт.

10

42491657

SCREW

1шт.

11

9929742

SEAL

1шт.
