Запчасти Case IH JX1070C (0.14.0[01]) - FUEL INJECTION PUMP ASSEMBLY (01) - ENGINE

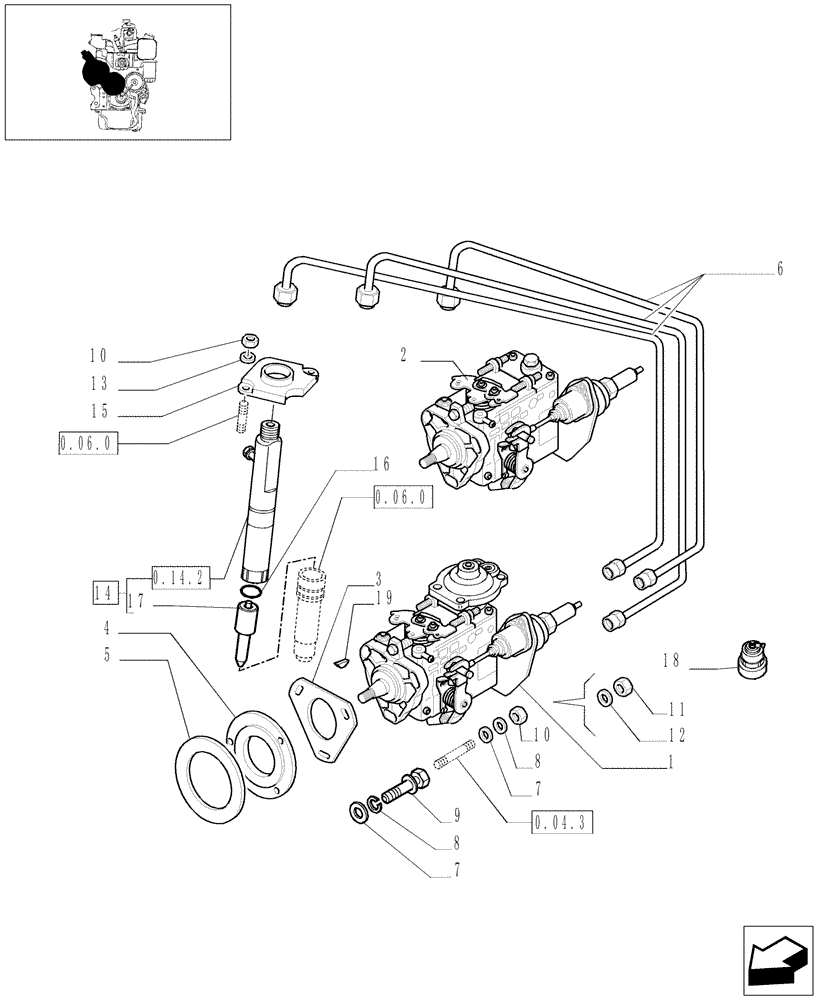

Схема запчастей Case IH JX1070C - (0.14.0[01]) - FUEL INJECTION PUMP ASSEMBLY (01) - ENGINE
17
0.14.2
0.06.0
7
13
12
10
8
3
5
9
0.06.0
0.04.3
14
11
10
15
8
1
6
18
4
19
16
2
7

Артикул

Название

Примечание

Количество

1

504042213

FUEL INJECTION PUMP

JX1075C

1шт.

1

504042213R

REMAN-INJECTION PUMP

JX1075C

1шт.

1

504042213C

CORE-INJECTION PUMP

Return Number

1шт.

1

504054475

FUEL INJECTION PUMP

JX1070C

1шт.

1

504054475R

REMAN-INJECTION PUMP

JX1070C

1шт.

1

504054475C

CORE-INJECTION PUMP

Return Number

1шт.

2

504041420

FUEL INJECTION PUMP

JX1060C

1шт.

2

504041420R

REMAN-INJECTION PUMP

JX1060C

1шт.

2

504041420C

CORE-INJECTION PUMP

Return Number

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

99441952

HOSE KIT

1шт.

7

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

9

500327046

SCREW

1шт.

10

43362

NUT,M8 x 1.25, Cl 10

9шт.

11

86509265

NUT,M5, Cl 10

1шт.

12

11199279

BELLEVILLE WASHER,M5 Bolt Size x 10mm OD x 0.5mm Thk

M5 x 10 x 0.5

1шт.

13

771326

WASHER,8.40mm ID

D=8 mm

6шт.

14

504054021

FUEL SYSTEM INJECTOR

JX1060C

3шт.

14

500307714

FUEL SYSTEM INJECTOR

JX1070C, JX1075C

3шт.

14

500307714R

REMAN-INJECT NOZZLE

JX1070C, JX1075C,

3шт.

14

500307714C

CORE-NOZZLE, INJECT

Return Number

3шт.

16

80066297

O-RING

D=8 x 1 x 26 mm

3шт.

15

4780612

BRACKET

3шт.

17

504051747

NOZZLE

JX1060C

1шт.

17

99469341

NOZZLE

JX1070C, JX1075C

1шт.

18

2852741

SOLENOID

Fuel Shutoff

1шт.

19

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

Выбрано товаров: 30
