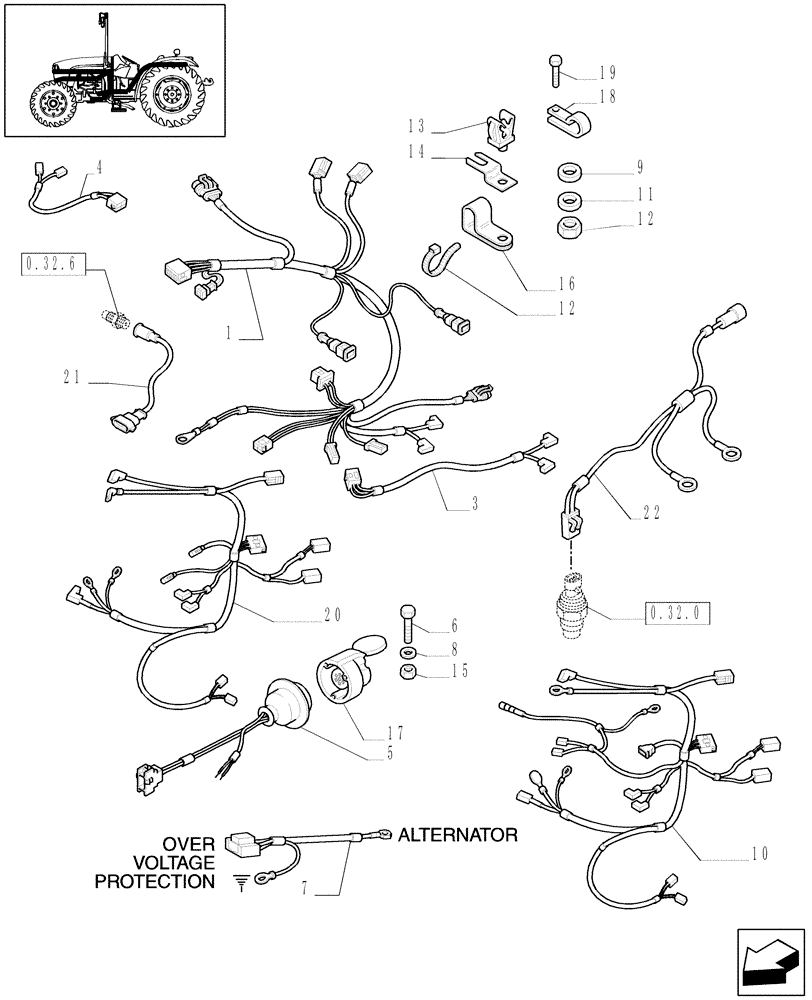

Запчасти Case IH JX1070C (1.75.4[01]) - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS

1

47132566

ELECTRIC CABLE

G/BOX SIDE

1шт.

2

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

3

5189718

WIRE HARNESS

1шт.

4

5191651

ELECTRIC CABLE

4WD

1шт.

5

47132892

ELECTRIC CABLE

INCL. REF. 17

1шт.

5

47132893

ELECTRIC CABLE

INCL. REF. 17, VAR.760

1шт.

6

13272924

SCREW,M4 x 35mm

M4x35

3шт.

7

5180464

ELECTRIC CABLE

1шт.

8

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

9

12605671

LOCK WASHER,Int Tooth, M10

1шт.

10

47124996

ELECTRIC CABLE

ENG. SIDE, Serial Range: -HJE001572

1шт.

11

12598374

LOCK WASHER

D=8

1шт.

12

10794014

NUT,M4, Cl 8

1шт.

13

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

3шт.

14

5120229

PLATE

3шт.

15

10794014

NUT,M4, Cl 8

3шт.

16

5112231

RETAINER COLLAR

1шт.

17

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

18

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

10 mm dia.

4шт.

19

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

4шт.

20

47133115

ELECTRIC CABLE

ENGINE, W/CAB, Start Serial: HJE001573

1шт.

20

87324524

ELECTRIC CABLE

ENGINE, L/CAB, Start Serial: HJE001573

1шт.

21

47133107

WIRE HARNESS

, Serial Range: HJE001573-HJH023484

1шт.

FOR ENGINE WATER TEMPERATURE SENSOR

1шт.

22

47133100

ELECTRIC CABLE

, Serial Range: HJE001573-HJH023484

1шт.

STOP ENGINE & KSB

1шт.

22

504088077

WIRE HARNESS

IVECO, Start Serial: HJH023484

1шт.
