Запчасти Case IH JX1070C (1.75.1/02) - (VAR.278-296) NA - 16X16 (30 KM/H) P.SHUTT. W/OIL COOLER - CONTROL LEVER AND SWITCH (06) - ELECTRICAL SYSTEMS

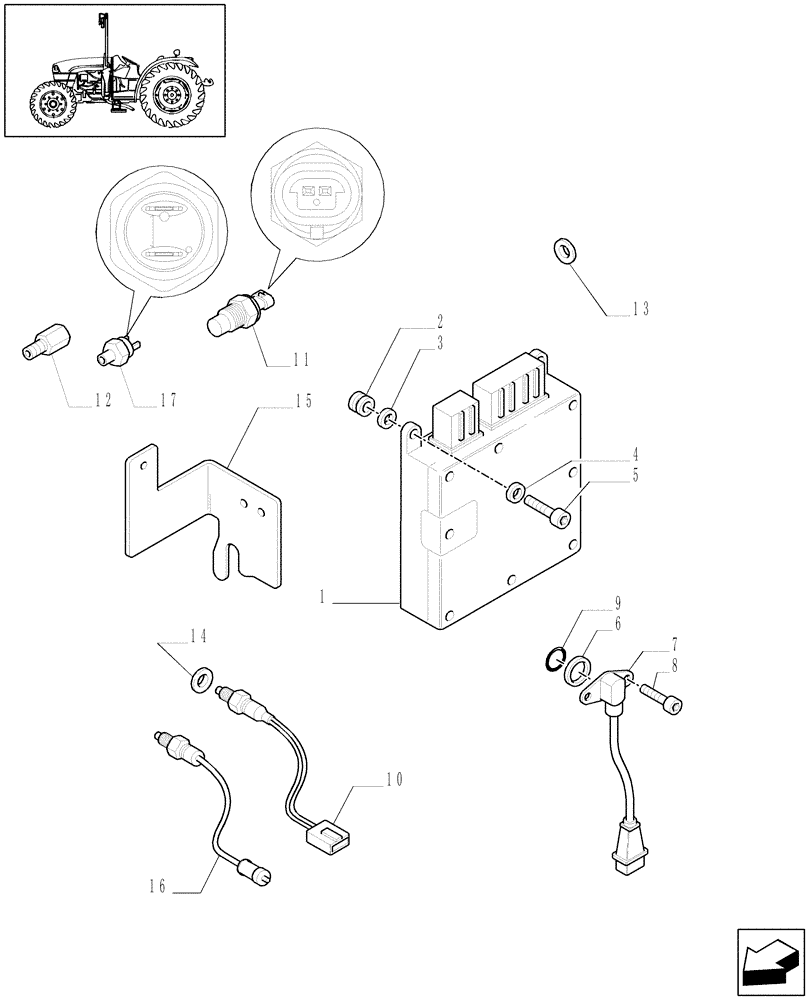

Схема запчастей Case IH JX1070C - (1.75.1/02) - (VAR.278-296) NA - 16X16 (30 KM/H) P.SHUTT. W/OIL COOLER - CONTROL LEVER AND SWITCH (06) - ELECTRICAL SYSTEMS
13
7
4
2
5
16
6
9
10
14
8
1
17
12
11
3
15

Артикул

Название

Примечание

Количество

1

47137064

ECU

, Serial Range: -C5651

1шт.

1

87575340R

REMAN ELECT CONTROL

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

1

87575340

ECU

P/Shuttle Control, Start Serial: D5651

1шт.

1

87575340R

REMAN ELECT CONTROL

Remanufactured Electronic Control Unit

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

2

5175382

RUBBER RING

D=10

1шт.

3

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

2шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

5153070

SPACER,15.3mm ID x 17.4mm OD x 4.5mm L

15.3x17.4x4.5, Serial Range: -HJE020810

2шт.

7

5150991

SENSOR

PTO SPEED, Serial Range: -HJE020810

2шт.

7

87564764

SENSOR

PTO SPEED, Start Serial: HJE020811

1шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

4шт.

9

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

10

5182077

SENSOR

BLACK

2шт.

10

5182078

SENSOR

RED

2шт.

10

47132568

SWITCH

GREY, Serial Range: -C5561

2шт.

10

47132569

SWITCH

GREEN, Serial Range: -C5561

2шт.

11

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

12

87745448

HYD CONNECTOR,M12 x 1.5 NPT x M12 x 1.5 NPT

1шт.

13

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

14

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

2шт.

15

47128721

SUPPORT

1шт.

16

87585979

SWITCH

Grey, Start Serial: D5561

2шт.

16

87585980

SWITCH

Green, Start Serial: D5561

2шт.

17

5157750

PRESSURE SWITCH

1шт.

Выбрано товаров: 27
