Запчасти Case IH JX1070C (1.75.1/01) - (VAR.138) NA - 8X8 (30KM/H) P. SHUTTLE FOR ADJ. COLUMN WITHOUT CAB - ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS

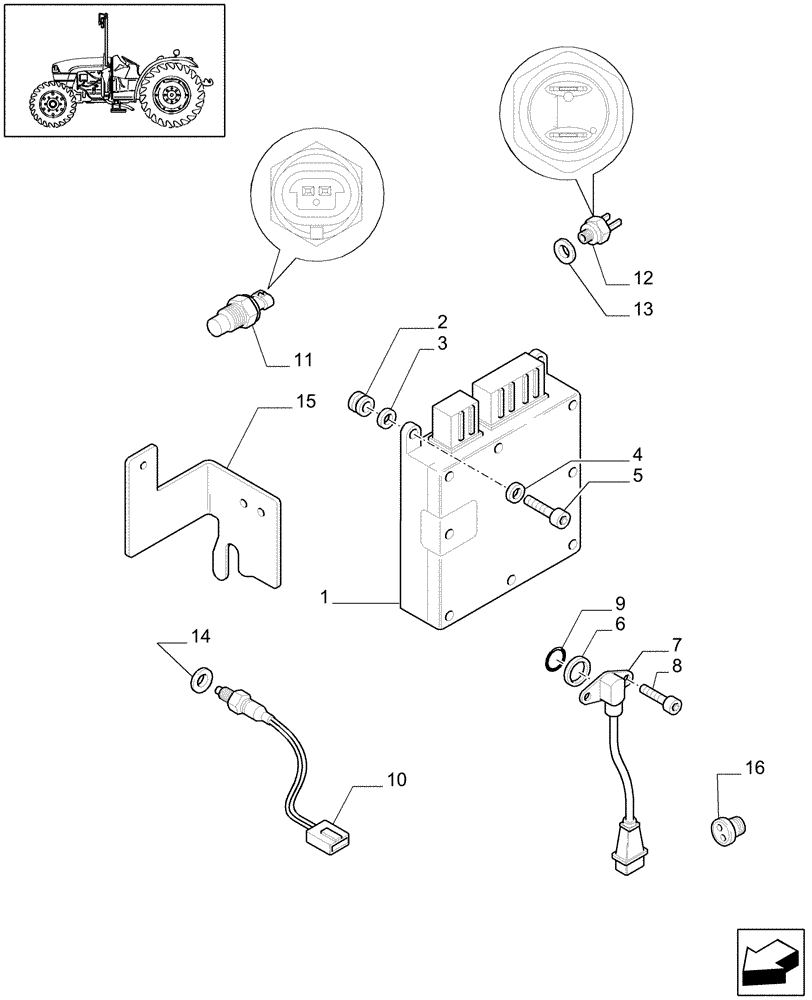

Схема запчастей Case IH JX1070C - (1.75.1/01) - (VAR.138) NA - 8X8 (30KM/H) P. SHUTTLE FOR ADJ. COLUMN WITHOUT CAB - ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS
11
15
7
12
13
8
5
6
4
10
16
1
14
9
3
2

Артикул

Название

Примечание

Количество

1

47137064

ECU

1шт.

1

87575340R

REMAN ELECT CONTROL

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

5175382

RUBBER RING

D=10

1шт.

3

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

2шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

5153070

SPACER,15.3mm ID x 17.4mm OD x 4.5mm L

15.3x17.4x4.5, Serial Range: -HJE020810

2шт.

7

5150991

SENSOR

PTO SPEED, Serial Range: -HJE020810

2шт.

7

87564764

SENSOR

PTO SPEED, Start Serial: HJE020811

1шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

9

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

10

47132568

SWITCH

GREY

1шт.

10

47132569

SWITCH

GREEN

1шт.

11

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

12

87395493

PRESSURE SWITCH

Trans. Oil

1шт.

Indicates oil missing in DT control pipe

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

14

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

1шт.

15

47128721

SUPPORT

1шт.

16

47128617

RUBBER RING

1шт.

Выбрано товаров: 21
