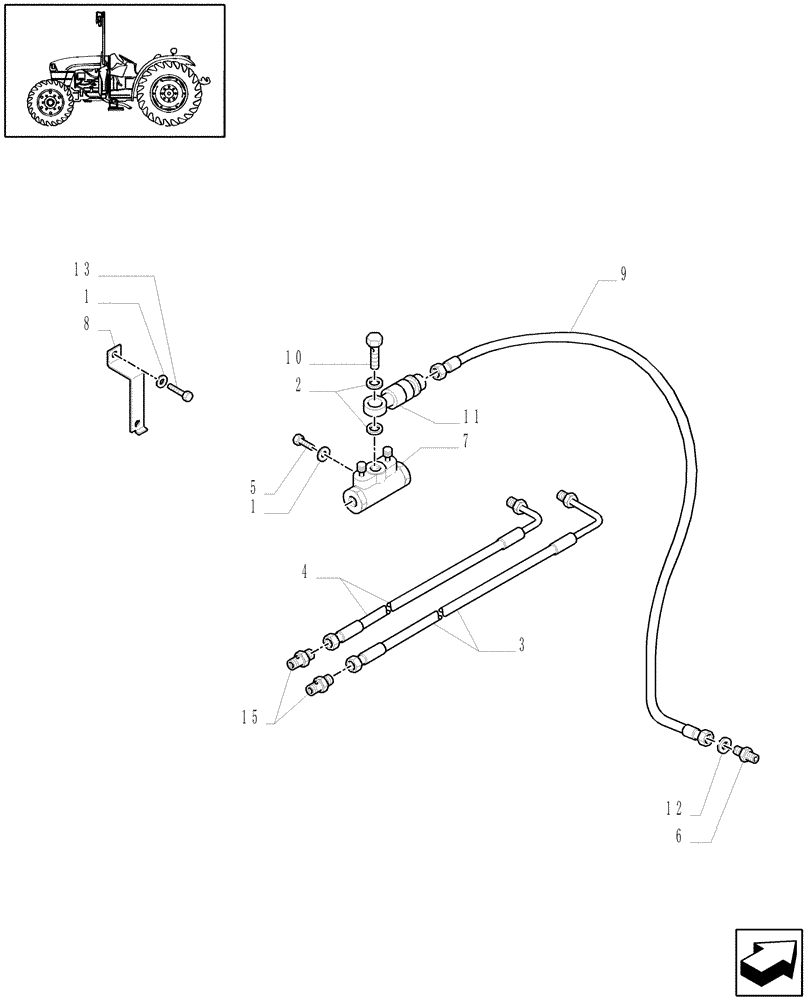

Запчасти Case IH JX1070C (1.68.5/04) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - (40KM/H) - VALVE (05) - REAR AXLE

1

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

3

87311072

RIGID TUBE

Front

1шт.

4

87311073

RIGID TUBE,6 mm DIA x 520, 35 mm L

1шт.

5

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

6

47131899

HYD CONNECTOR

1шт.

7

5143506

MASTER CYLINDER

1шт.

8

87312255

SUPPORT

1шт.

9

87312651

FLEXIBLE HOSE,4.75mm ID x 1670mm L

1шт.

10

87392054

HYD CONNECTOR,M12 x 1 x 42.5mm L

1шт.

11

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

12

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

1шт.

13

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

14

5155643

BANJO BOLT

D=2

1шт.

15

87312034

HYD CONNECTOR

1шт.
