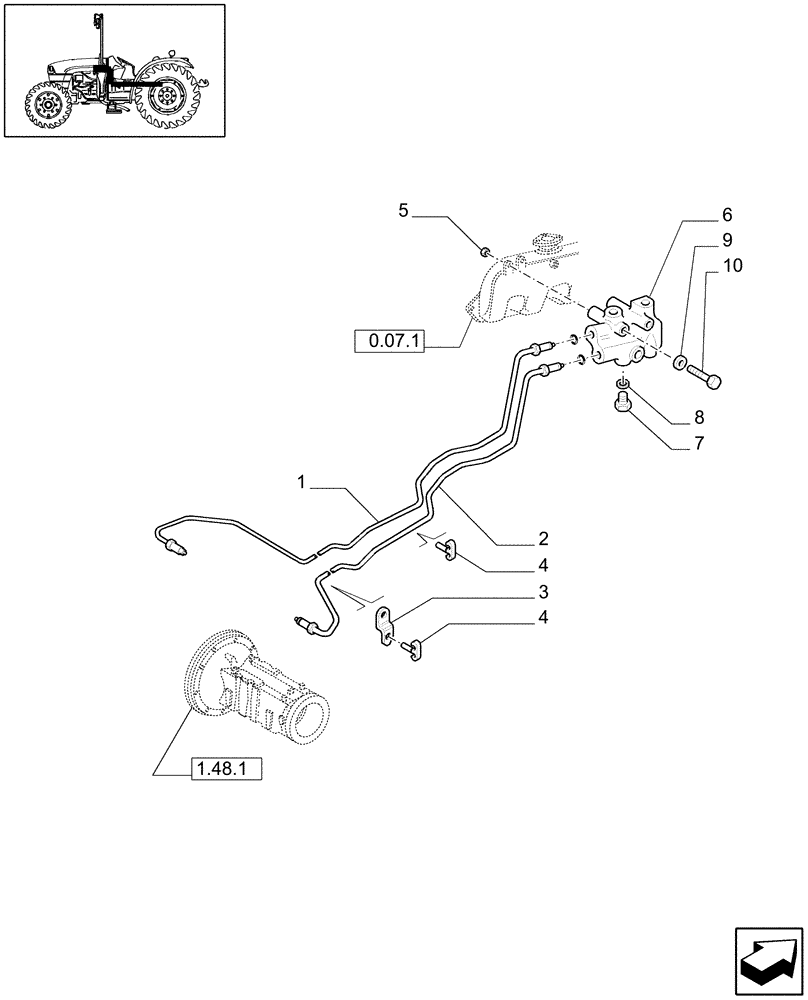

Запчасти Case IH JX1070C (1.68.5) - BRAKE PIPING (05) - REAR AXLE

1

5178302

RIGID TUBE

LH

1шт.

2

5178300

RIGID TUBE

RH

1шт.

3

5177821

BRACKET

REAR

1шт.

4

14575380

CLIP,4.8mm ID

6шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

6

5177861

BLOCK

1шт.

7

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

3шт.

7

5102705

PLUG,Hex, 1/8-27

1/8"-27

1шт.

8

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x8

1шт.

9

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

1шт.

10

16045024

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

1шт.
