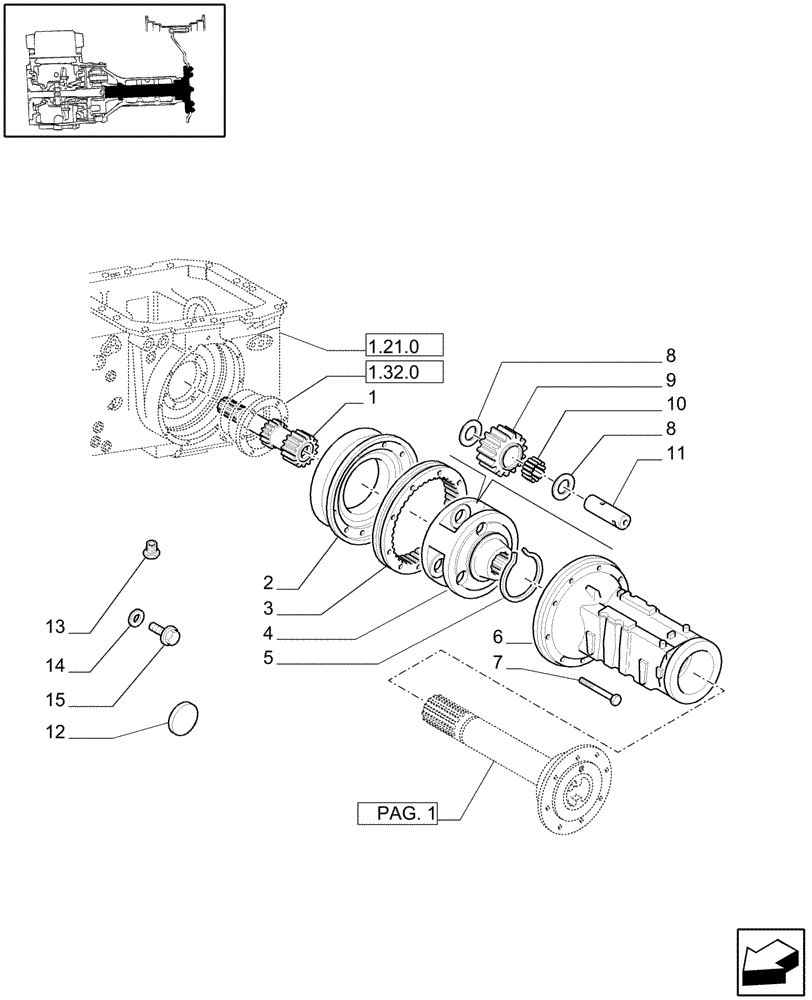

Запчасти Case IH JX1070C (1.48.1/01[02]) - (VAR.445-449) RICE FIELD VERSION - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5180630

HALF SHAFT

RH, JX1070C, JX1075C, Serial Range: -C5485

1шт.

1

5180631

HALF SHAFT

LH, JX1070C, JX1075C, Serial Range: -C5485

1шт.

1

5180629

HALF SHAFT

RH, JX1060C

1шт.

1

5180626

HALF SHAFT

LH, JX1060C

1шт.

1

87543134

HALF SHAFT,20/29mm ID x 212.5mm L, 13/21T

RH, JX1070C, JX1075C, Start Serial: D5485

1шт.

1

87543135

HALF SHAFT,19/29mm ID x 244.5mm L, 13/21T

LH, 1070C, JX1075C, Start Serial: D5485

1шт.

2

5172087

SPACER,175mm ID x 337mm OD x 53mm L

2шт.

3

5168232

RING GEAR,250.9mm ID x 322mm OD x 27.5 mm Tnk, 65T

JX1070C, JX1075C

2шт.

3

5178624

RING GEAR

JX1060C

2шт.

4

5168229

CARRIER

JX1070C, JX1075C

2шт.

4

5125331

CARRIER

JX1060C

2шт.

5

4998883

CIRCLIP,112mm ID x 119mm OD

D=119

2шт.

6

5182113

FINAL DRIVE HOUSING

JX1070C, JX1075C

2шт.

6

5182283

FINAL DRIVE HOUSING

JX1060C

2шт.

7

15978121

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

15шт.

7

11422124

BOLT,Hex, M14 x 1.5 x 130, 8.8

19шт.

7

15978124

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

19шт.

8

4997200

THRUST WASHER,35.8mm ID x 60mm OD x 1mm Thk

12шт.

9

5168231

GEAR,25T

JX1070C, JX1075C

12шт.

9

5178623

GEAR

JX1060C

12шт.

10

5168230

NEEDLE BEARING,35.7mm ID x 49.7mm OD x 38mm W

JX1070C, JX1075C

12шт.

10

5124311

ROLLER BEARING,35.7mm ID x 49.7mm OD x 32mm W

JX1060C

12шт.

11

5124312

PIN,35.7mm OD x 82mm L

6шт.

12

14328201

PLUG,M10, Tapered

1шт.

13

5145574

PLUG,M7 X 12.5mm

D=7

1шт.

14

10261760

COPPER WASHER,20mm ID x 28mm OD x 1.5mm Thk

2шт.

15

5198705

PLUG

H=20

4шт.
