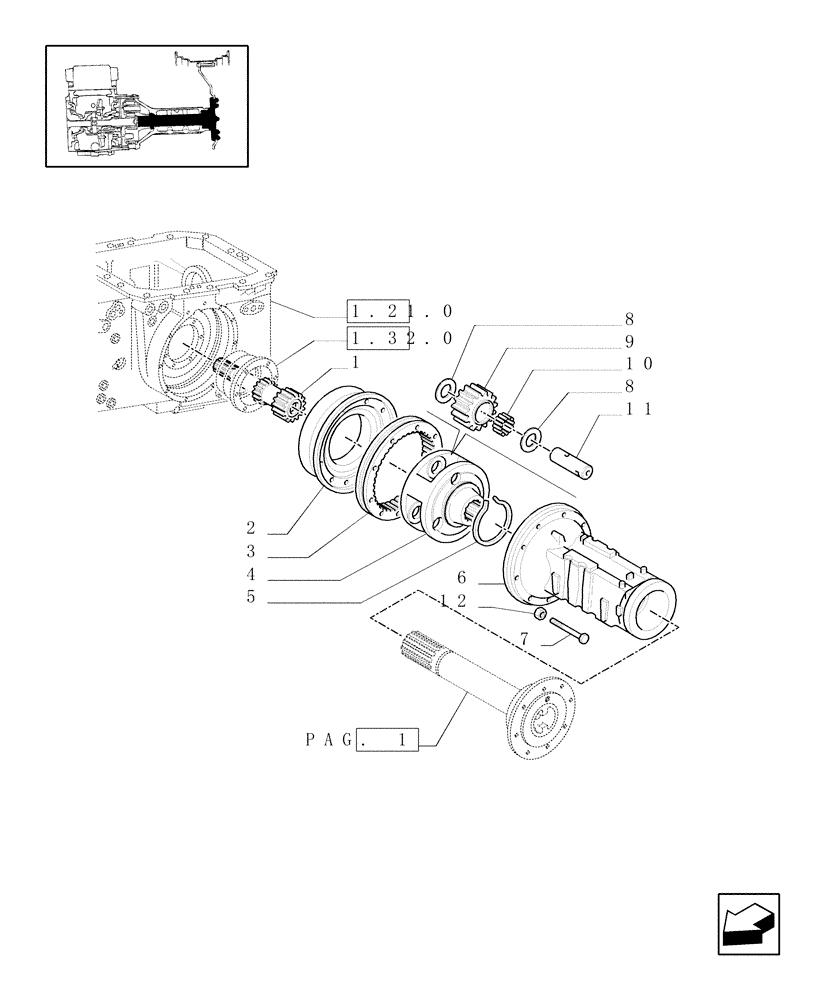

Запчасти Case IH JX1070C (1.48.1[05]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5180630

HALF SHAFT

RH, Serial Range: -C5485

1шт.

1

5180631

HALF SHAFT

LH, Serial Range: -C5485

1шт.

1

87543134

HALF SHAFT,20/29mm ID x 212.5mm L, 13/21T

RH, Start Serial: D5485

1шт.

1

87543135

HALF SHAFT,19/29mm ID x 244.5mm L, 13/21T

LH, Start Serial: D5485

1шт.

2

5172087

SPACER,175mm ID x 337mm OD x 53mm L

2шт.

3

5168232

RING GEAR,250.9mm ID x 322mm OD x 27.5 mm Tnk, 65T

2шт.

4

5168229

CARRIER

2шт.

5

4998883

CIRCLIP,112mm ID x 119mm OD

D=119

2шт.

6

5168478

FINAL DRIVE HOUSING

2шт.

7

15978121

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

15шт.

7

11422124

BOLT,Hex, M14 x 1.5 x 130, 8.8

5шт.

8

4997200

THRUST WASHER,35.8mm ID x 60mm OD x 1mm Thk

12шт.

9

5168231

GEAR,25T

12шт.

10

5168230

NEEDLE BEARING,35.7mm ID x 49.7mm OD x 38mm W

12шт.

11

5124312

PIN,35.7mm OD x 82mm L

6шт.

12

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

20шт.
