(1.44.0/01) - (VAR.242) FRONT WEIGHT & SUPPORT WITH 5 PLATES AND CENTRAL PLATE

Запчасти Case IH JX1070C (1.44.0/01) - (VAR.242) FRONT WEIGHT & SUPPORT WITH 5 PLATES AND CENTRAL PLATE (04) - FRONT AXLE & STEERING

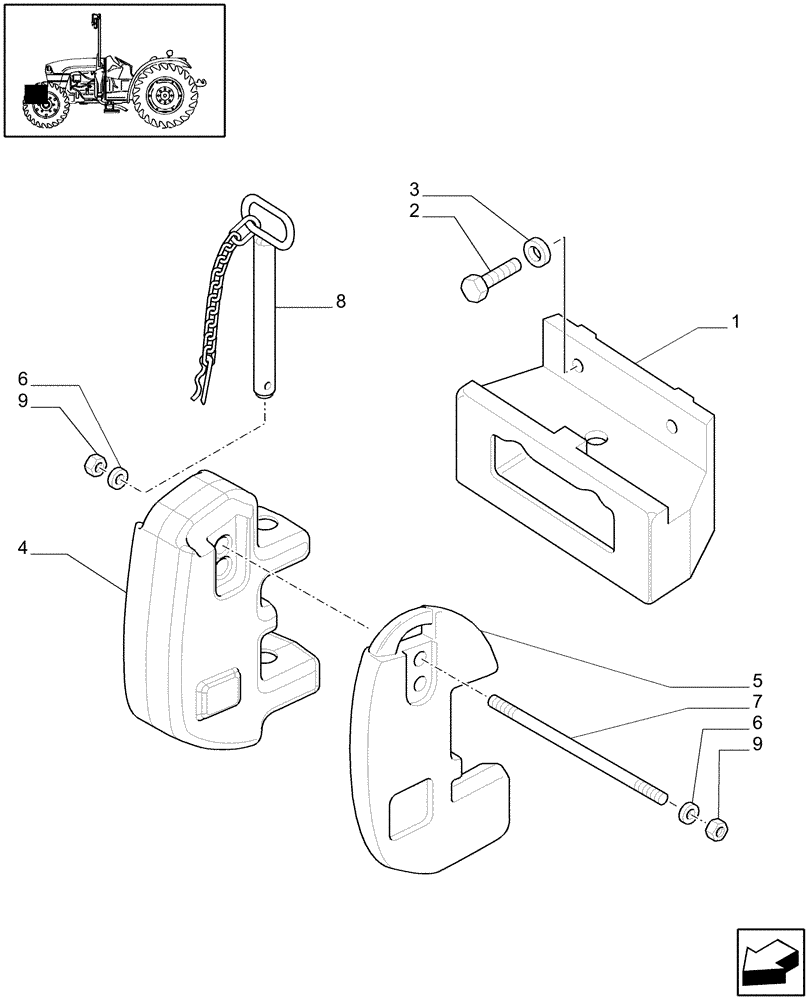

Схема запчастей Case IH JX1070C - (1.44.0/01) - (VAR.242) FRONT WEIGHT & SUPPORT WITH 5 PLATES AND CENTRAL PLATE (04) - FRONT AXLE & STEERING
9
6
7
3
9
5
2
8
4
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47123848

SUPPORT

2WD

1шт.

2

11125131

BOLT,Hex, M20 x 70, 10.9

2WD

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20x38, 2WD

4шт.

4

47057078

WEIGHT

40KG/88LB

1шт.

5

47056220

WEIGHT,40Kg/88Lb

4шт.

6

44018768

WASHER,17mm ID x 55mm OD x 8mm Thk

17x55

2шт.

7

5179588

THREADED ROD,M16 x 1.5 x 378mm

1шт.

8

47132417

PIN,3.6mm OD x 64mm L

1шт.

9

12164111

NUT,M16, Cl 8

2шт.
