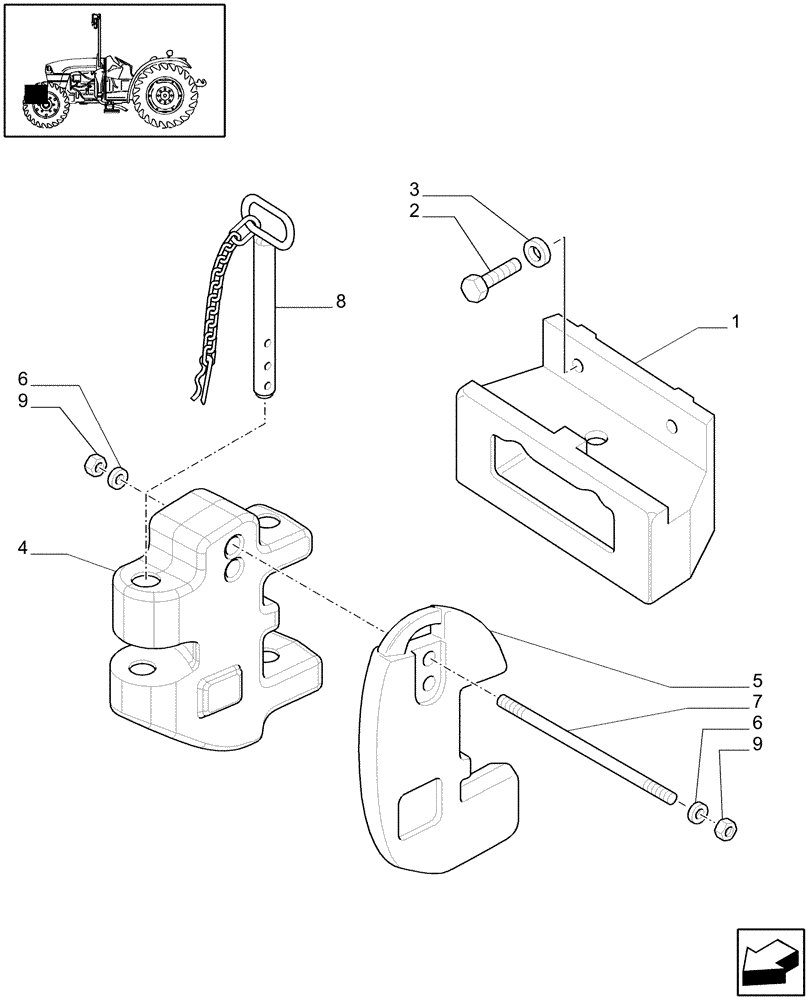

Запчасти Case IH JX1070C (1.44.0) - (VAR.168/2) FRONT WEIGHT & SUPPORT (04) - FRONT AXLE & STEERING

1

47123848

SUPPORT

2WD

1шт.

2

11125131

BOLT,Hex, M20 x 70, 10.9

2WD

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20x38, 2WD

4шт.

4

47056274

WEIGHT

40KG/88LB

1шт.

4

87325015

WEIGHT,75Kg/165Lb

75KG/165LB

1шт.

5

47056220

WEIGHT,40Kg/88Lb

4шт.

6

44018768

WASHER,17mm ID x 55mm OD x 8mm Thk

17x55

2шт.

7

5179588

THREADED ROD,M16 x 1.5 x 378mm

1шт.

8

47132417

PIN,3.6mm OD x 64mm L

1шт.

9

12164111

NUT,M16, Cl 8

2шт.
