(1.42.0/06) - (VAR.275-275/1) HI-LO SERVO-ASSISTED STEERING HYDRAULIC SYSTEM - OIL PUMP AND PIPES

Запчасти Case IH JX1070C (1.42.0/06) - (VAR.275-275/1) HI-LO SERVO-ASSISTED STEERING HYDRAULIC SYSTEM - OIL PUMP AND PIPES (04) - FRONT AXLE & STEERING

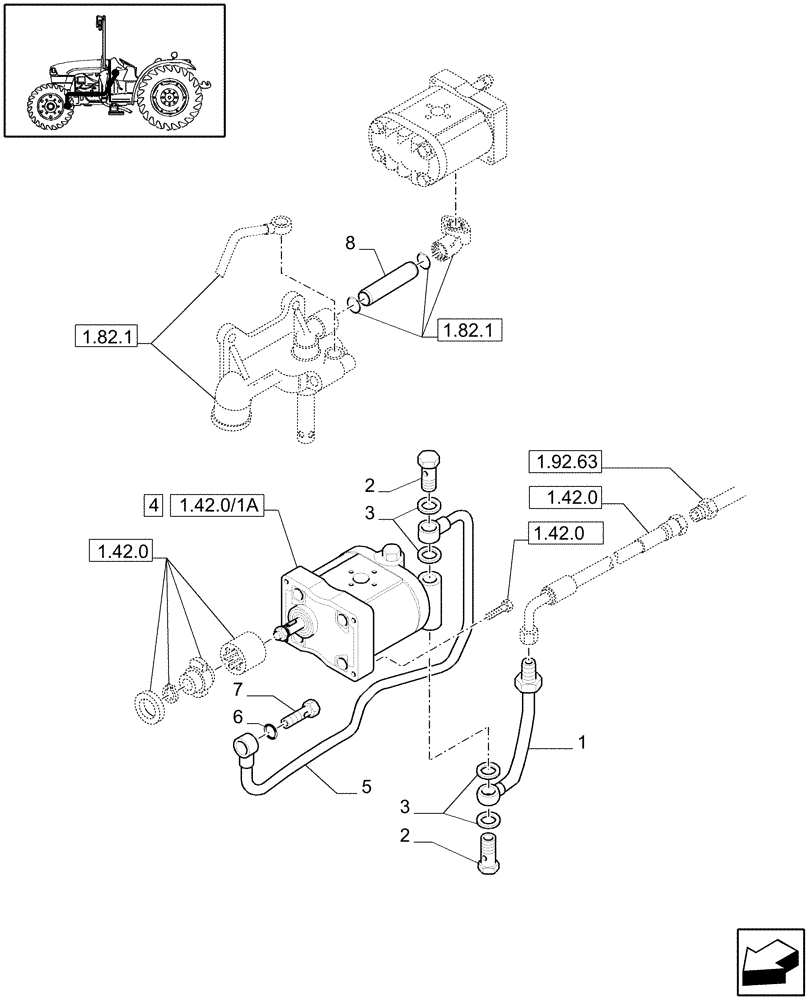

Схема запчастей Case IH JX1070C - (1.42.0/06) - (VAR.275-275/1) HI-LO SERVO-ASSISTED STEERING HYDRAULIC SYSTEM - OIL PUMP AND PIPES (04) - FRONT AXLE & STEERING
1
2
3
1.82.1
3
2
1.92.63
1.42.0
1.42.0
5
4
1.42.0/1a
8
6
1.82.1
1.42.0
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181153

RIGID TUBE

1шт.

2

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

3

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

4шт.

4

5180275

HYDRAULIC PUMP,246.67 CC

Assy., BOSCH A31XRP2

1шт.

5180275R

REMAN-HYD PUMP

JX1060C, JX1070C, JX1075C all (12/03-)

1шт.

5180275C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

5180992

RIGID TUBE

1шт.

6

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

2шт.

6

4858609

WASHER,Brass

16x22

2шт.

7

10184417

BANJO BOLT,M16 x 1.5 x 31mm

1шт.

8

5184443

RIGID TUBE

1шт.
