Запчасти Case IH JX1070C (1.40.8/12) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - FRONT AXLE W/BRAKES (40KM/H) - HYDR. STEER. CYL. (04) - FRONT AXLE & STEERING

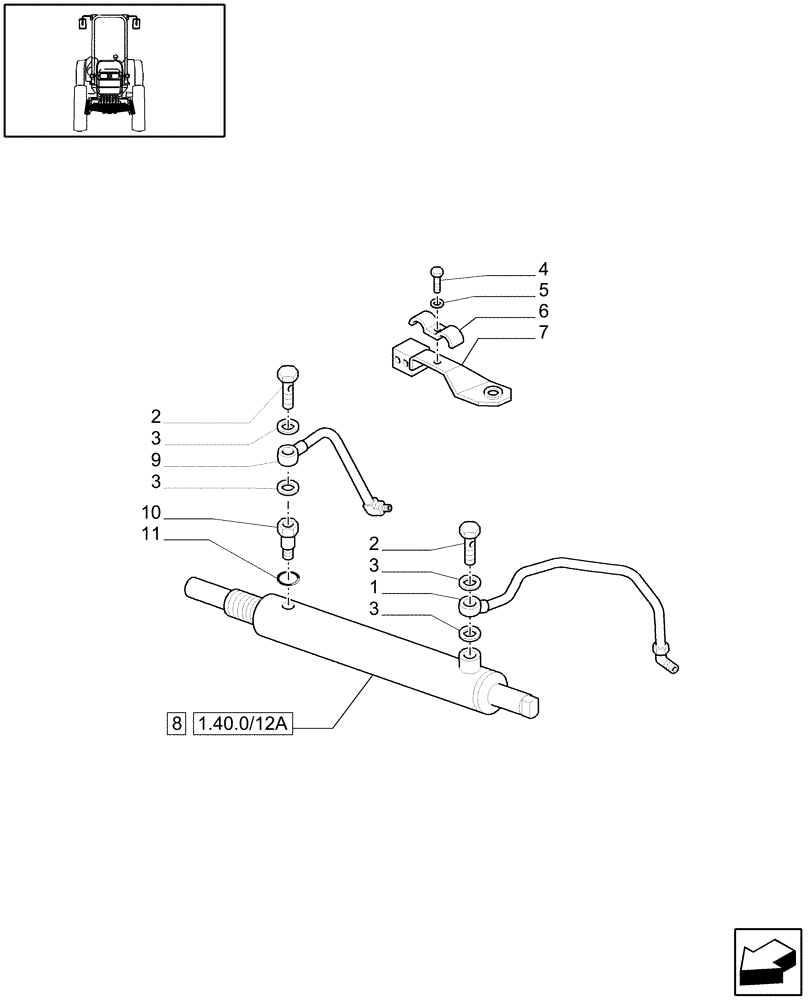

Схема запчастей Case IH JX1070C - (1.40.8/12) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - FRONT AXLE W/BRAKES (40KM/H) - HYDR. STEER. CYL. (04) - FRONT AXLE & STEERING
11
6
3
3
7
4
5
8
2
1.40.0/12a
3
10
2
1
9
3

Артикул

Название

Примечание

Количество

1

47131857

RIGID TUBE

1шт.

2

10184311

BANJO BOLT,M14 x 1.5 x 27mm

2шт.

3

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86x22.23x2

4шт.

4

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

5

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

6

4999554

CLAMP,2 Hoses

1шт.

7

47131794

BRACKET

1шт.

8

47136495

SERVO STEERING CYL,Double Acting, 36mm Stroke

ASSY

1шт.

9

47124110

HYD TUBE

1шт.

10

47124202

HYD CONNECTOR,6 - M14 x 1.5 ORFS

1шт.

11

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

Выбрано товаров: 11
