Запчасти Case IH JX1070C (1.40.8/10[02]) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - FRONT AXLE W/BRAKES (40KM/H) - EPICYCLIC REDUCT. GEAR (04) - FRONT AXLE & STEERING

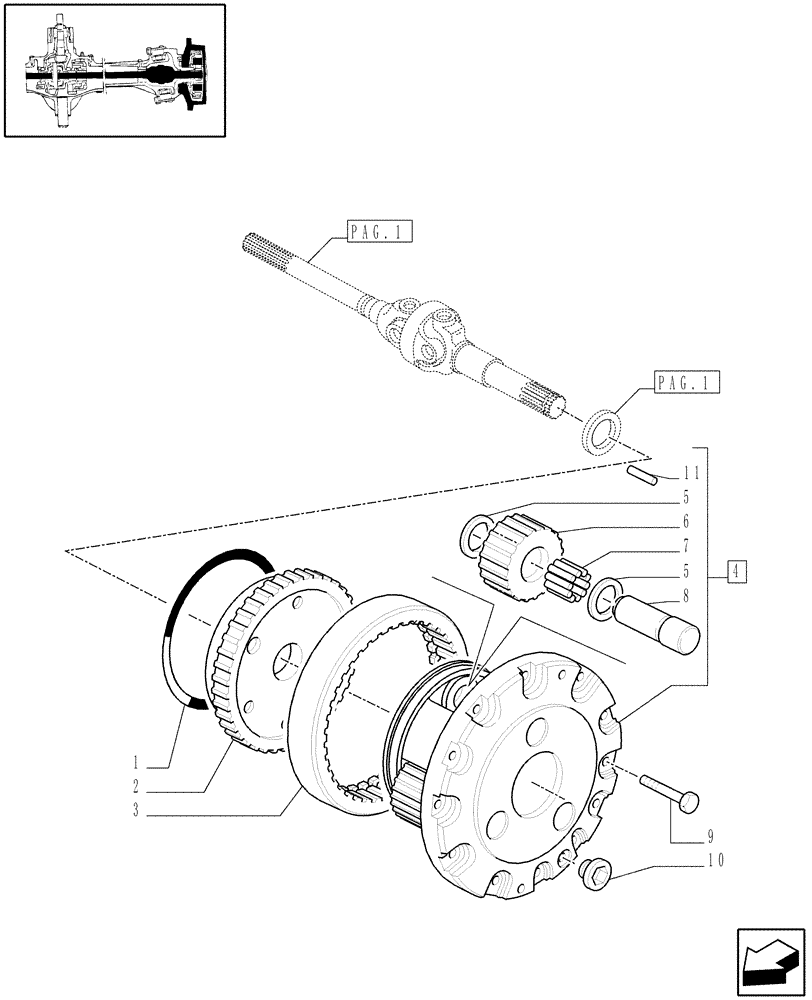

Схема запчастей Case IH JX1070C - (1.40.8/10[02]) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - FRONT AXLE W/BRAKES (40KM/H) - EPICYCLIC REDUCT. GEAR (04) - FRONT AXLE & STEERING
1
4
10
pag.1
pag.1
3
2
11
5
5
6
8
7
9

Артикул

Название

Примечание

Количество

1

5165162

SNAP RING,M50, Int

2шт.

2

5173284

GEAR,60T

2шт.

3

5165273

RING GEAR,60T

2шт.

4

5181047

CARRIER

2шт.

5

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25x45x0.8

12шт.

6

5169137

GEAR,23T

6шт.

7

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

25.6x35.6x29.8, Serial Range: -HJH087226

6шт.

8

5181050

PIN,27mm OD x 63.5mm L

6шт.

9

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

10

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

11

5153886

NEEDLE ROLLER,40.3mm OD x 29.8mm L

25.6x35.6x29.8, Start Serial: HJH087227

114шт.

Выбрано товаров: 11
