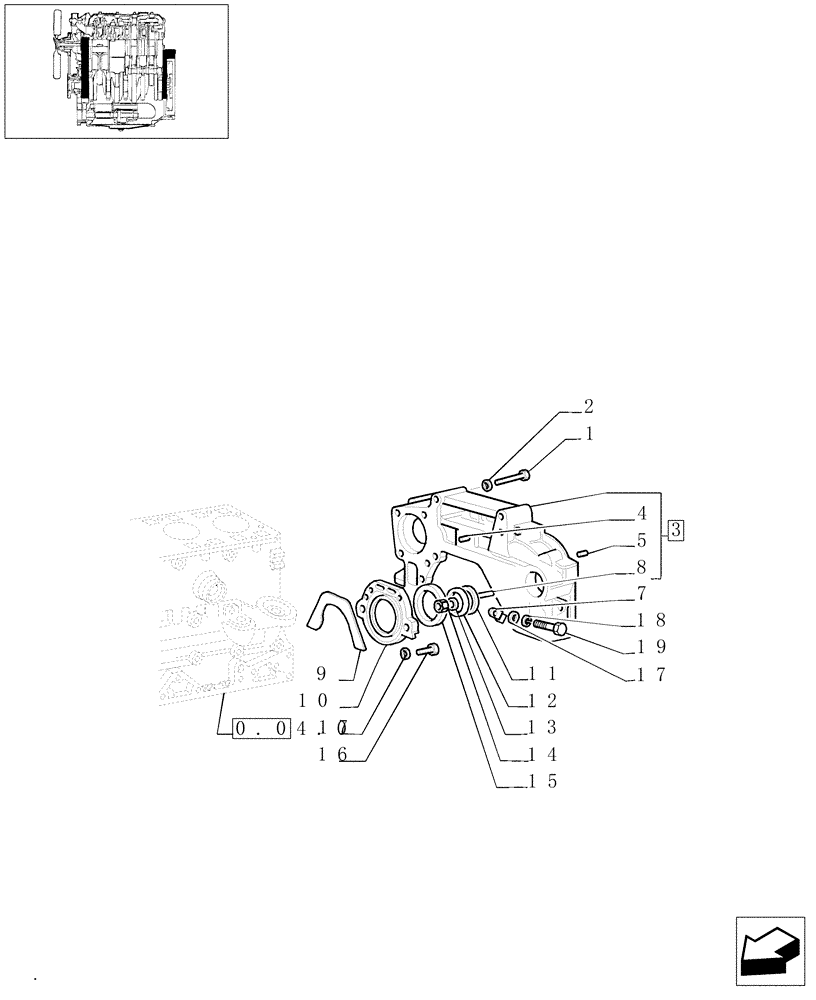

Запчасти Case IH JX1070C (0.04.3[02]) - COVERS & GASKETS, REAR (01) - ENGINE

1

80280854

SCREW

M14 x 2 x 35

2шт.

1

16613324

SCREW,Hex, M14 x 100mm

M14 x 1,5 x 100

2шт.

2

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

3

500338857

COVER

ASSY

1шт.

4

10839710

DOWEL,M10 x 15.00mm

2шт.

5

4658441

DOWEL,10mm OD x 20mm L

2шт.

7

500327025

OPERATOR TIMING REF/

OPERATOR TIMING REF/

1шт.

8

13517521

STUD

M8 x 16 x 35

1шт.

9

4849994

GASKET,0.8mm Thk

1шт.

10

98489586

COVER

1шт.

11

98400797

GASKET,47mm ID x 62mm OD x 0.8mm Thk

1шт.

12

4670802

COVER

1шт.

13

17094960

SEAL

1шт.

14

16104121

NUT,M8 x 1.25, Cl 10

1шт.

15

504127327

SEAL,114.8mm ID x 134.8mm OD x 13mm Thk

1шт.

16

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

17

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4 x 16 mm

5шт.

18

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

19

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.
