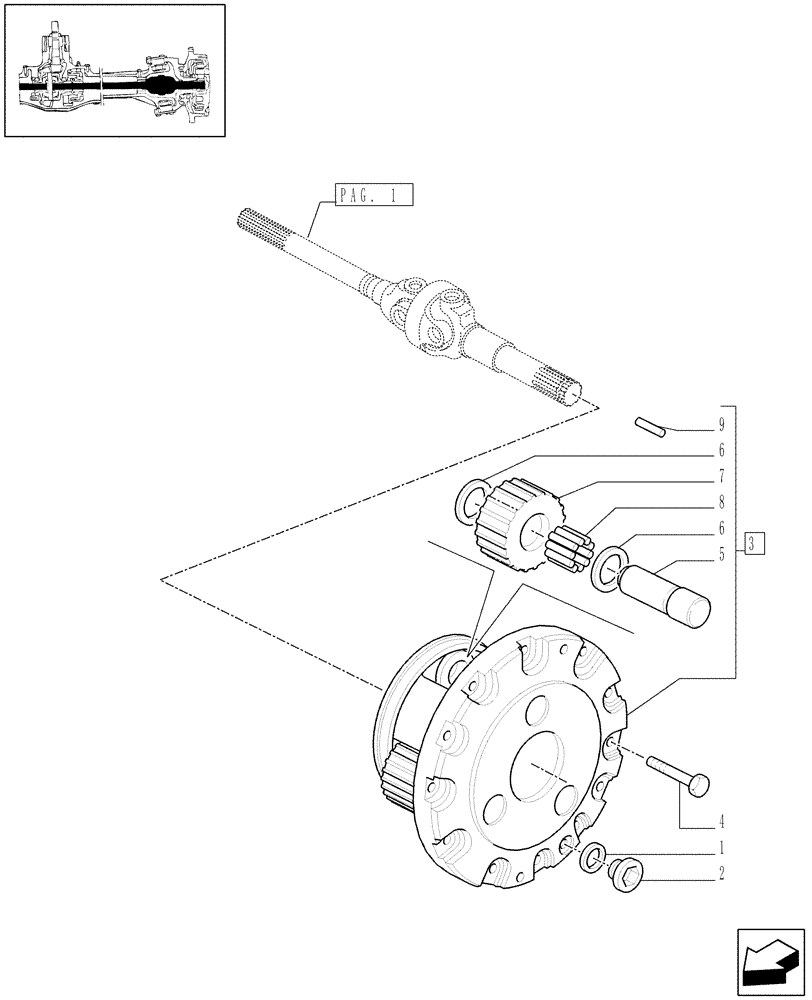

Запчасти Case IH JX1070C (1.40.5/10[02]) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H) (04) - FRONT AXLE & STEERING

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

10275011

PLUG,M22 x 1.5 x 13

2шт.

3

5181047

CARRIER

ASSY

2шт.

4

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

20шт.

5

5181050

PIN,27mm OD x 63.5mm L

6шт.

6

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25x45x0.8

12шт.

7

5169137

GEAR,23T

6шт.

8

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

25.6x35.6x29.8, Serial Range: -HJH087226

6шт.

9

5153886

NEEDLE ROLLER,40.3mm OD x 29.8mm L

25.6x35.6x29.8, Start Serial: HJH087227

114шт.
