(1.40.5/10[01]) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H)

Запчасти Case IH JX1070C (1.40.5/10[01]) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H) (04) - FRONT AXLE & STEERING

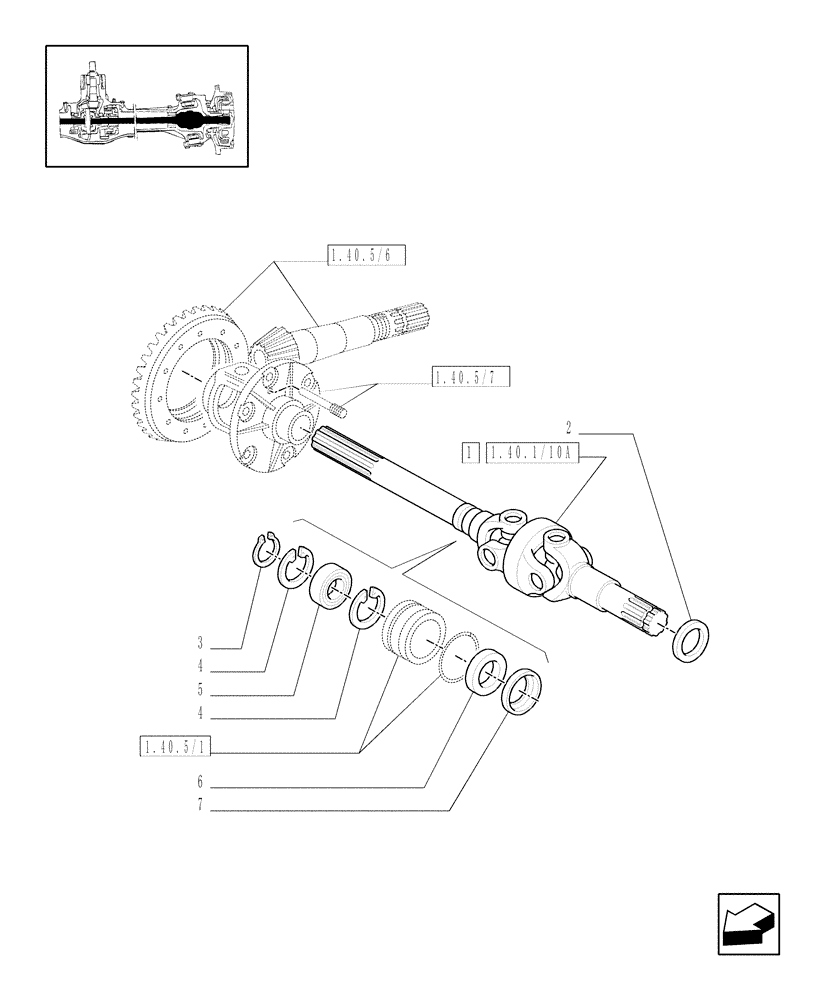

Схема запчастей Case IH JX1070C - (1.40.5/10[01]) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H) (04) - FRONT AXLE & STEERING
1.40.5/7
4
3
1.40.5/1
2
1.40.1/10a
1.40.5/6
1
4
6
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186660

ARTICULATED SHAFT

LH

1шт.

1

5186659

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

47x65x16.5

2шт.

3

80370003

CIRCLIP

Ext, M30

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13, Assy

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.
