(1.40.5/03) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H)

Запчасти Case IH JX1070C (1.40.5/03) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H) (04) - FRONT AXLE & STEERING

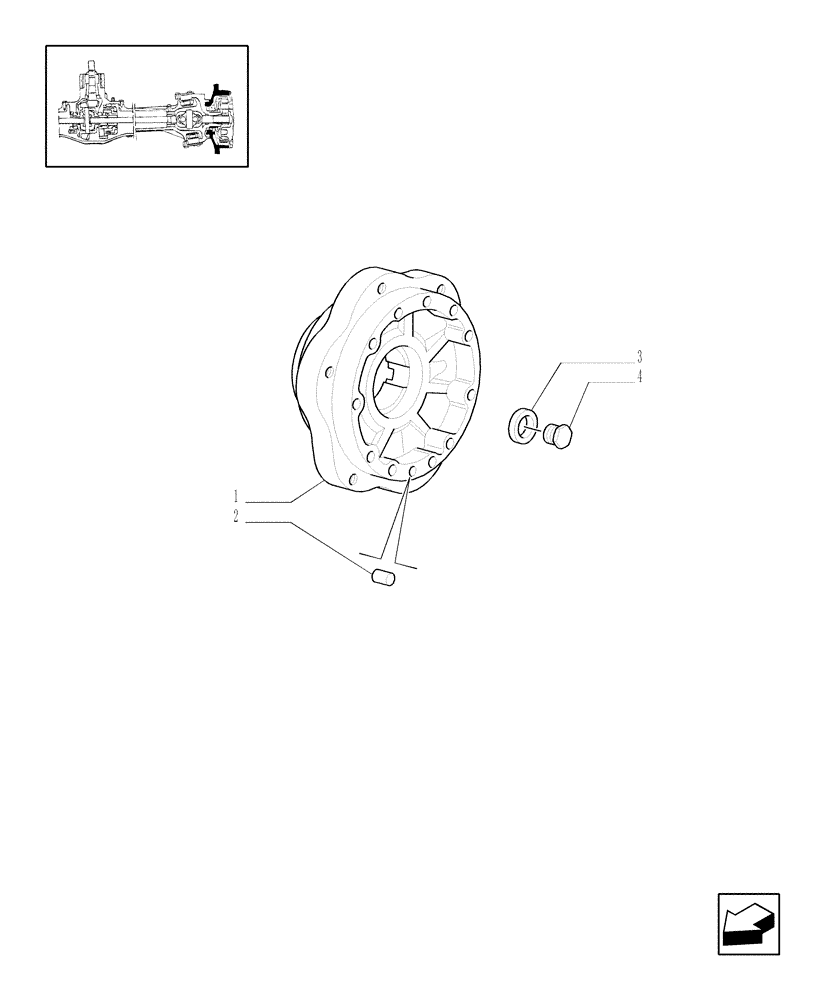

Схема запчастей Case IH JX1070C - (1.40.5/03) - (VAR.326/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ BRAKES (30KM/H) (04) - FRONT AXLE & STEERING
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5178631

HUB

2шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

4шт.

3

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

4

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.
