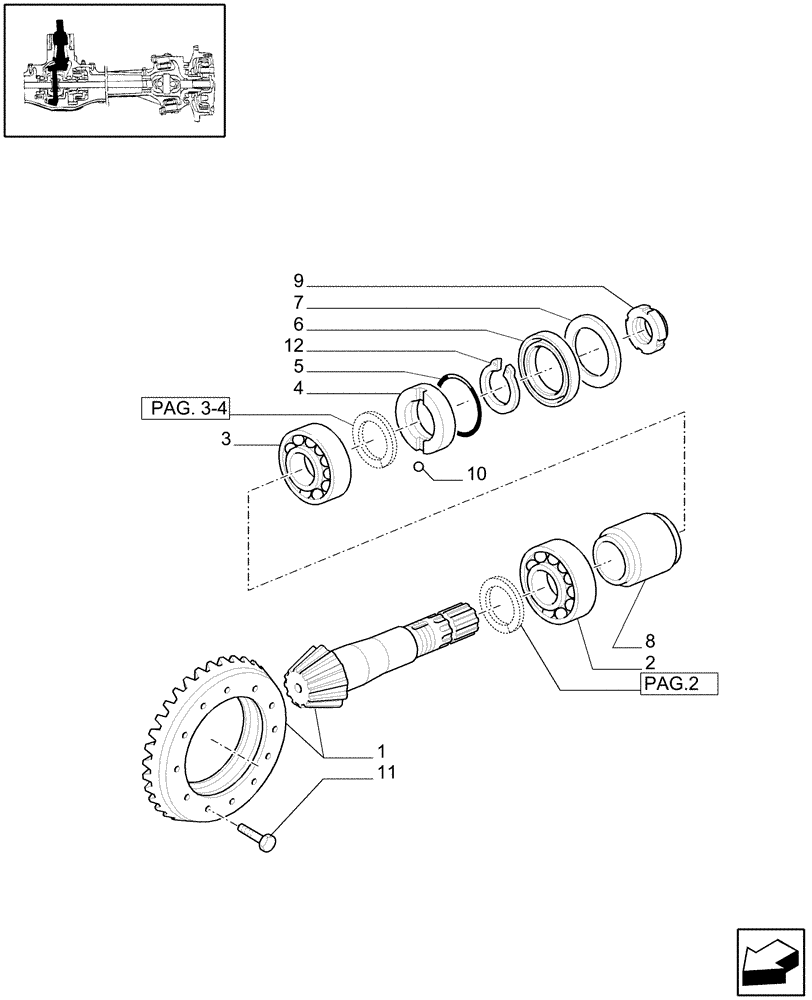

Запчасти Case IH JX1070C (1.40.3/06[01]) - (VAR.325-692) FRONT AXLE W/LIMITED SLIP DIFF, L/FRONT BRAKES (30 KM/H) - BEVEL GEAR/PINION SET (04) - FRONT AXLE & STEERING

1

5175101

BEVEL GEAR,30T

Ratio 8/30

1шт.

1

5175103

BEVEL GEAR

Ratio 9/42

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

3

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

35 x 72 x 18.25

1шт.

4

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

5

14454380

O-RING,31.47mm ID x 1.78" Width

1шт.

6

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

45 x 75

1шт.

7

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

8

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

9

5143242

RING NUT,M35 x 1.5

M35 x 19.5

1шт.

10

20419320

BALL,6.35mm OD

D=6.35

1шт.

11

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

12

11067776

SNAP RING,M29, Ext

1шт.
