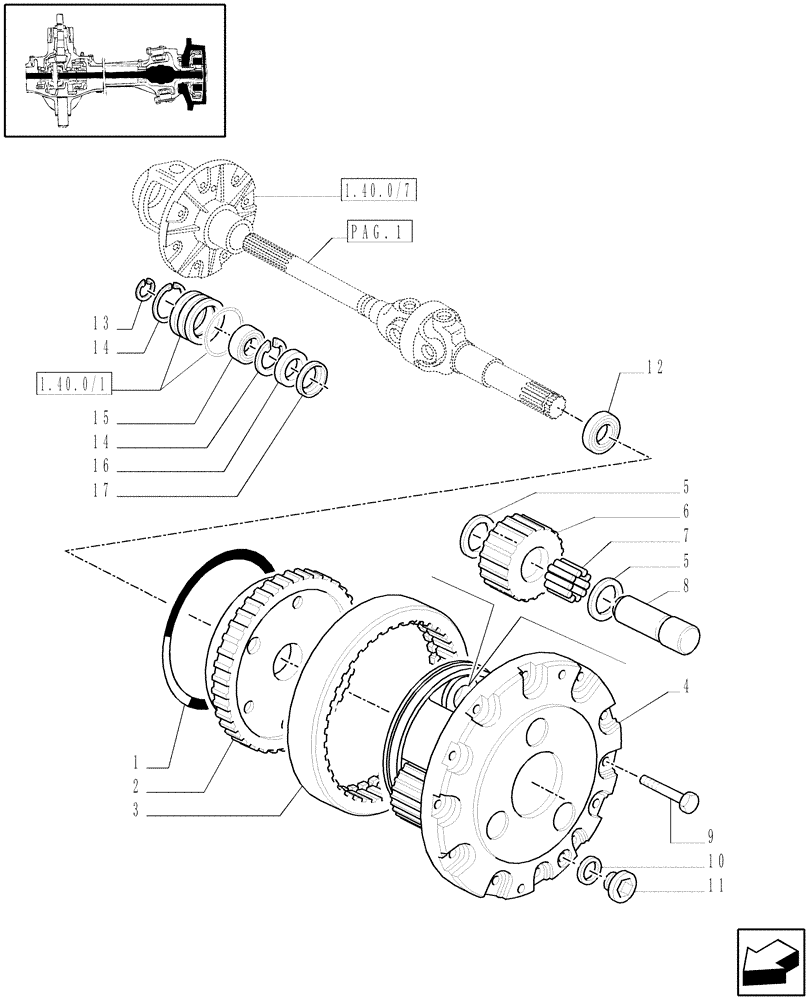

Запчасти Case IH JX1070C (1.40.2/10[02]) - (VAR.838) FRONT PTO LIFT FOR MDC - EPICYCLIC REDUCTION GEAR (04) - FRONT AXLE & STEERING

1

5165162

SNAP RING,M50, Int

2шт.

2

5173284

GEAR,60T

2шт.

3

5165273

RING GEAR,60T

2шт.

4

5181049

SUPPORT

2шт.

5

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25x45x0.8

12шт.

6

5169137

GEAR,23T

6шт.

7

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

6шт.

8

5181050

PIN,27mm OD x 63.5mm L

6шт.

9

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

20шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

10275011

PLUG,M22 x 1.5 x 13

2шт.

12

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

47x65x16.5

2шт.

13

11067876

SNAP RING,M30, Ext

2шт.

14

11060676

CIRCLIP,M55, Int

4шт.

15

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

16

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

17

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.
