(1.40.2/08[02]) - (VAR.838-839) FRONT PTO LIFT - HYDRAULIC DIFF. LOCK CONTROL

Запчасти Case IH JX1070C (1.40.2/08[02]) - (VAR.838-839) FRONT PTO LIFT - HYDRAULIC DIFF. LOCK CONTROL (04) - FRONT AXLE & STEERING

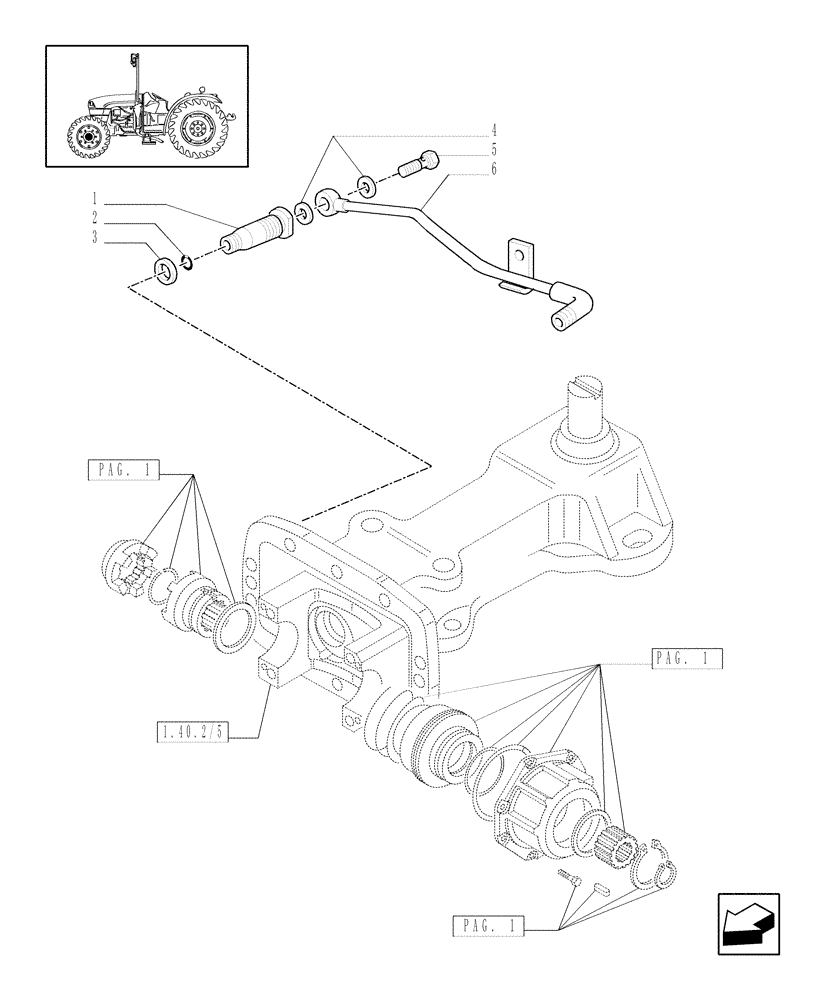

Схема запчастей Case IH JX1070C - (1.40.2/08[02]) - (VAR.838-839) FRONT PTO LIFT - HYDRAULIC DIFF. LOCK CONTROL (04) - FRONT AXLE & STEERING
1.40.2/5
pag. 1
1
2
3
4
6
pag. 1
5
pag. 1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

1шт.

2

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

3

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

1шт.

4

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14x20x1.5

2шт.

5

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

6

47124182

RIGID TUBE

1шт.

Выбрано товаров: 6
