Запчасти Case IH JX1070C (1.40.2/05) - (VAR.838-839) FRONT PTO LIFT - SUPPORT (04) - FRONT AXLE & STEERING

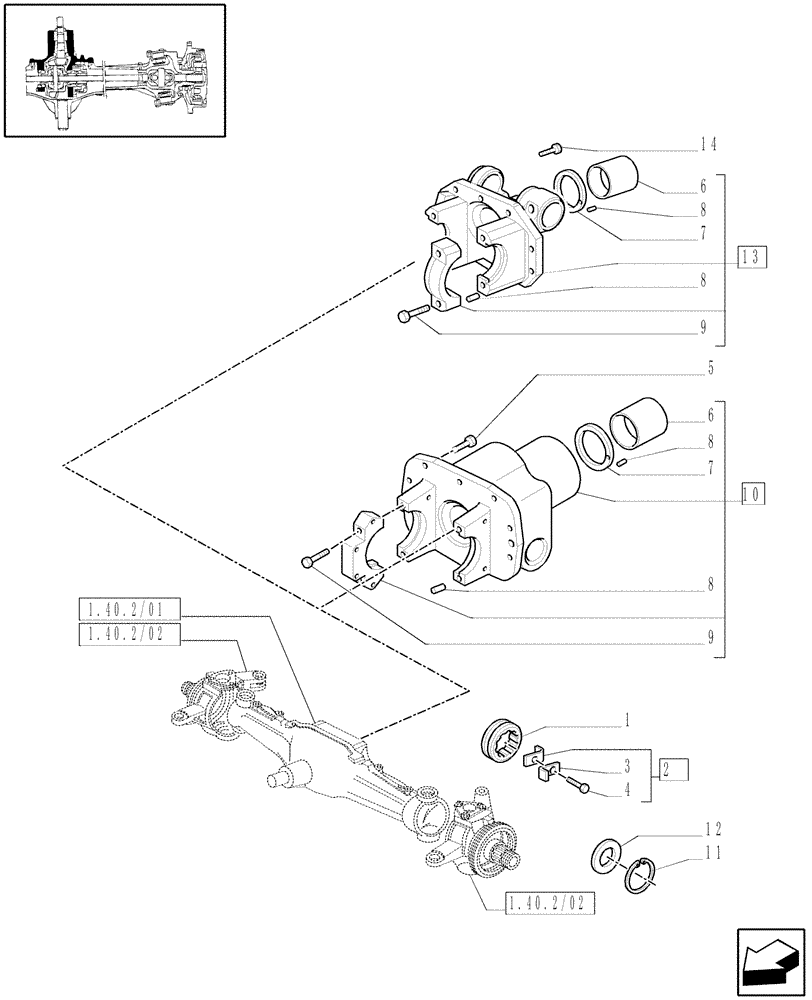

Схема запчастей Case IH JX1070C - (1.40.2/05) - (VAR.838-839) FRONT PTO LIFT - SUPPORT (04) - FRONT AXLE & STEERING
10
2
6
13
9
7
1
12
8
1.40.2/01
4
8
7
9
1.40.2/02
14
6
5
1.40.2/02
11
8
8
3

Артикул

Название

Примечание

Количество

1

4966240

BEARING LOCK NUT,M95 x 2, 15T

1шт.

2

4966243

ADJUSTING PLATE

2шт.

3

562659

PLATE

2шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

, Serial Range: -HJH055056

5шт.

5

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

, Serial Range: -HJH055056

3шт.

5

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

, Serial Range: -HJH055056

1шт.

5

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

M12x70, Serial Range: -HJH055056

2шт.

5

14275521

SCREW,Hex, M12 x 1.25 x 80mm

M12x80, Serial Range: -HJH055056

2шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

8

4966244

PIN,5mm OD x 15mm L

3шт.

9

14275821

SCREW

M12x1.25x110

4шт.

10

5198485

SUPPORT

ASSY, Serial Range: -HJH055056

1шт.

11

11062476

SNAP RING,M90, Int

1шт.

12

5167750

SHIM,0.90mm Thk

1шт.

12

5167751

SHIM,1.00mm Thk

1шт.

12

5167752

SHIM,1.10mm Thk

1шт.

12

5167753

SHIM,1.20mm Thk

1шт.

12

5167754

SHIM,1.30mm Thk

1шт.

12

5167755

SHIM,1.40mm Thk

1шт.

12

5167756

SHIM,1.50mm Thk

1шт.

12

5167757

SHIM,1.60mm Thk

1шт.

12

5167758

SHIM,1.70mm Thk

1шт.

12

5167759

SHIM,1.80mm Thk

1шт.

12

5167760

SHIM,1.90mm Thk

1шт.

12

5167761

SHIM,2.00mm Thk

1шт.

13

87335147

SUPPORT

, Start Serial: HJH055057

1шт.

14

87332798

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

M12x1.5x120, Start Serial: HJH055057

2шт.

14

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

M12x1.5x45, Start Serial: HJH055057

6шт.

14

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

M12x1.5x35, Start Serial: HJH055057

3шт.

Выбрано товаров: 31
