Запчасти Case IH JX1070C (1.40.1/07) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - DIFFERENTIAL (04) - FRONT AXLE & STEERING

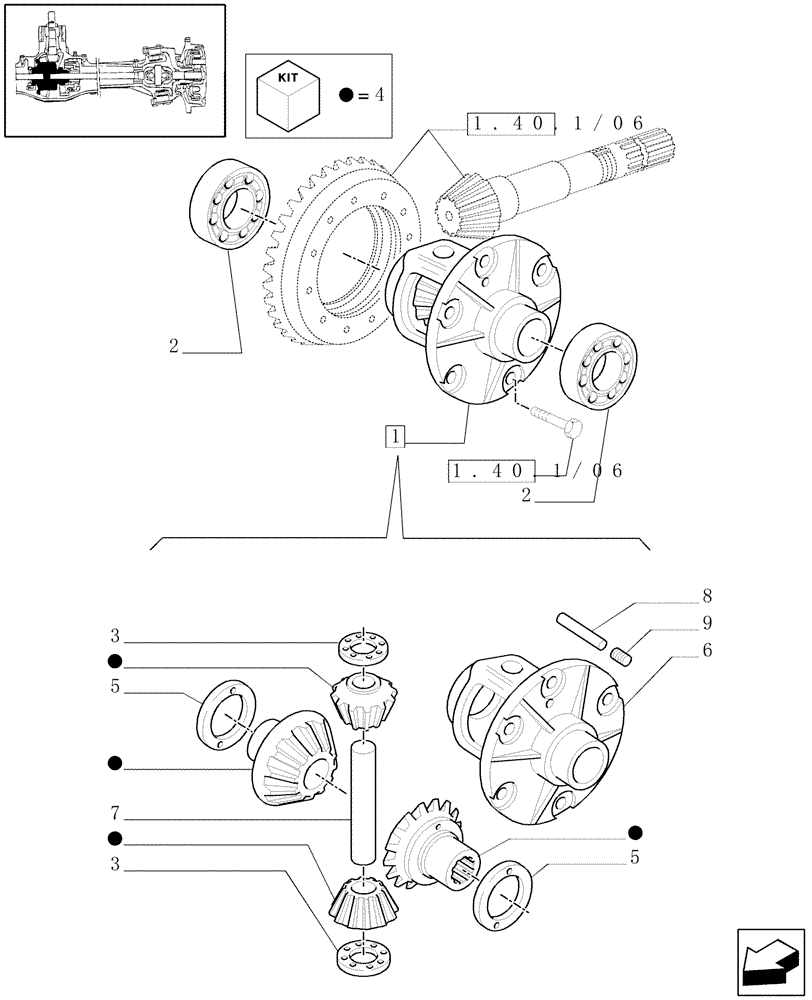

Схема запчастей Case IH JX1070C - (1.40.1/07) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - DIFFERENTIAL (04) - FRONT AXLE & STEERING
5
4
4
7
4
4
2
2
3
1.40.1/06
4
6
4
9
1.40.1/06
1
5
3
8

Артикул

Название

Примечание

Количество

1

5167879

DIFFERENTIAL GEAR

ASSY

1шт.

2

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

ASSY., 50x90

2шт.

3

5104408

THRUST WASHER,22mm ID x 45mm OD x 1.5mm Thk

2шт.

4

87523074

KIT

1шт.

5

5167655

THRUST WASHER,30.2mm ID x 54mm OD x 1.5mm Thk

2шт.

5

5167694

THRUST WASHER,30.2mm ID x 54mm OD x 1.6mm Thk

2шт.

5

5167702

THRUST WASHER,30.2mm ID x 54mm OD x 1.7mm Thk

2шт.

5

5167703

THRUST WASHER,30.2mm ID x 54mm OD x 1.8mm Thk

2шт.

6

5174802

HOUSING

1шт.

7

5103612

PIN,22mm OD x 123mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

Выбрано товаров: 12
