(1.40.0/12A) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN

Запчасти Case IH JX1070C (1.40.0/12A) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN (04) - FRONT AXLE & STEERING

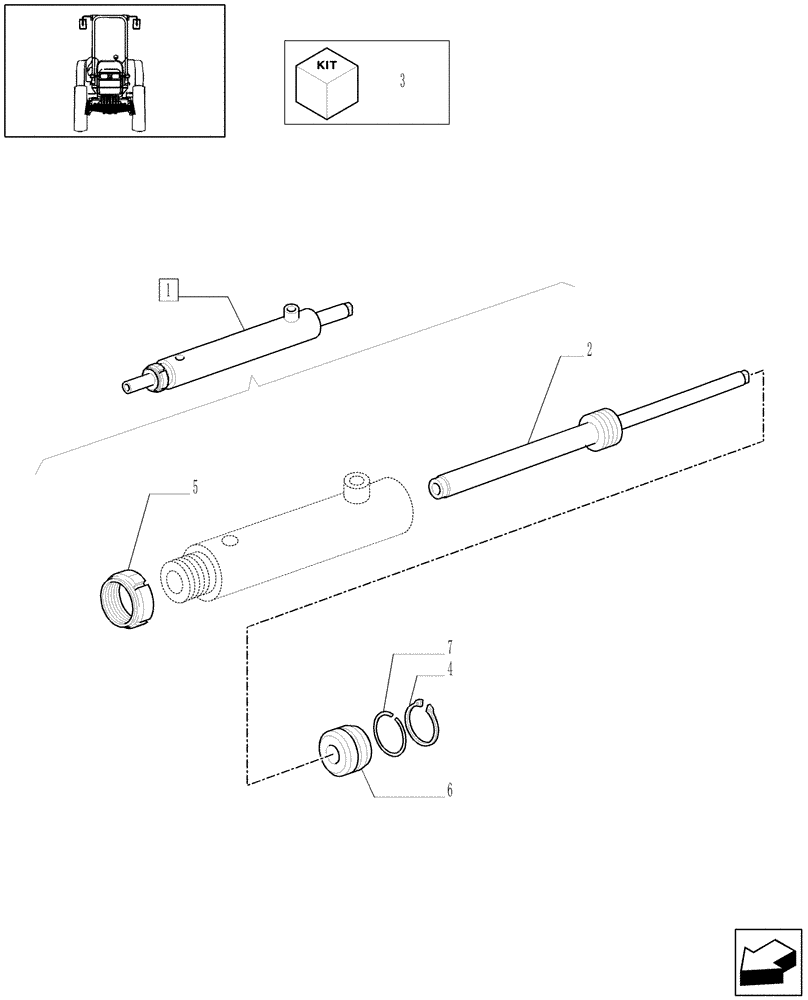

Схема запчастей Case IH JX1070C - (1.40.0/12A) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN (04) - FRONT AXLE & STEERING
5
2
1
7
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198486

SERVO STEERING CYL

ASSY, Serial Range: -HJE024693

1шт.

1

47136495

SERVO STEERING CYL,Double Acting, 36mm Stroke

ASSY, Start Serial: HJE024694

1шт.

2

47124922

ROD

1шт.

3

47124937

SEAL KIT

1шт.

4

47124935

LOCKING RING

1шт.

5

47124930

LOCK NUT

, Serial Range: -HJE024693

1шт.

5

47136501

LOCK NUT

, Start Serial: HJE024694

1шт.

6

47124936

END PLATE

1шт.

7

47124934

LOCKING RING

1шт.
