(1.40.0/12) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER

Запчасти Case IH JX1070C (1.40.0/12) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING

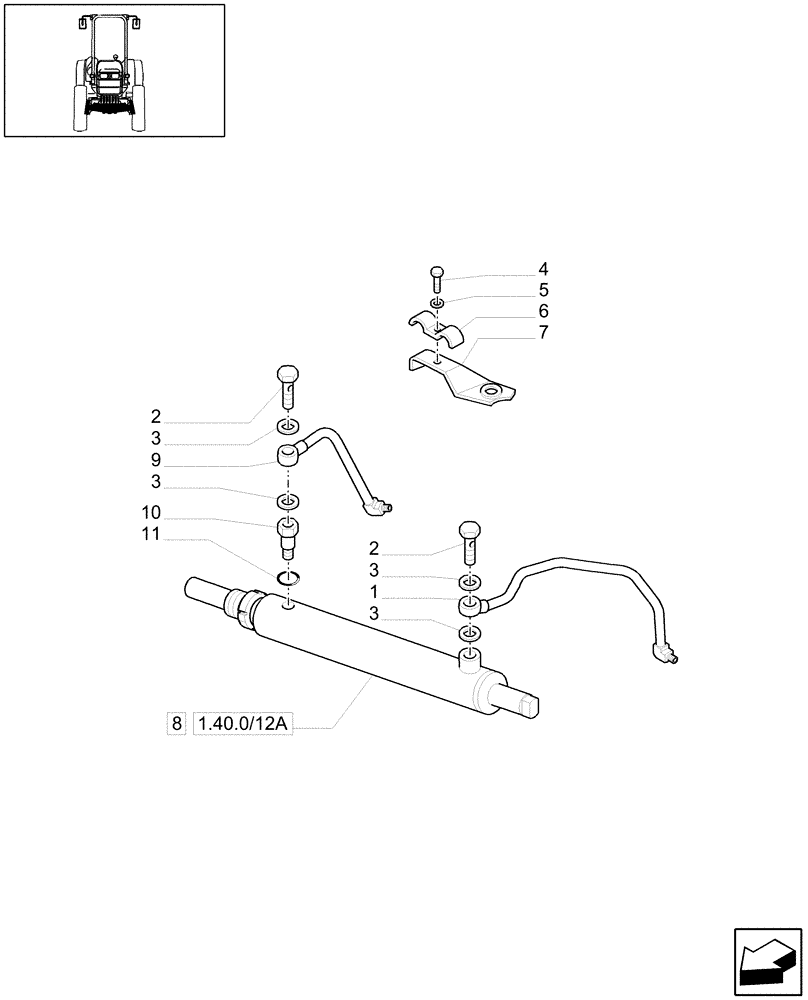

Схема запчастей Case IH JX1070C - (1.40.0/12) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING
9
1.40.0/12a
2
6
3
3
3
4
1
2
8
7
3
5
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47131857

RIGID TUBE

1шт.

2

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

3

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86x22.23

4шт.

4

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

5

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

6

4999554

CLAMP,2 Hoses

1шт.

7

47131784

BRACKET

1шт.

8

5198486

SERVO STEERING CYL

, Serial Range: -HJE024693

1шт.

8

47136495

SERVO STEERING CYL,Double Acting, 36mm Stroke

, Start Serial: HJE024694

1шт.

9

47124110

HYD TUBE

1шт.

10

47124202

HYD CONNECTOR,6 - M14 x 1.5 ORFS

1шт.

11

14437785

O-RING,11.3mm ID x 2.4mm

1шт.
