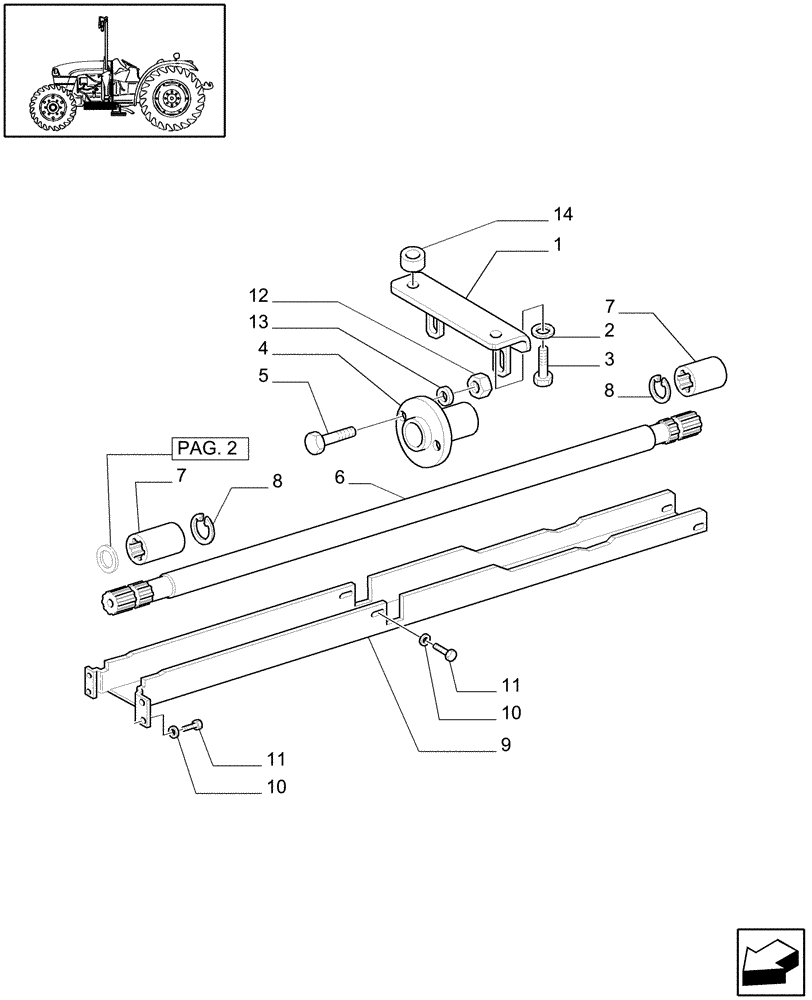

Запчасти Case IH JX1070C (1.38.5[01]) - 4WD PROPELLER SHAFT (04) - FRONT AXLE & STEERING

1

5178213

SUPPORT

1шт.

2

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

3

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

2шт.

4

5167098

BEARING ASSY,30mm ID

1шт.

5

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

5175735

PROPELLER SHAFT

1шт.

7

5199243

SPLINED COUPLING

2шт.

8

11067776

SNAP RING,M29, Ext

2шт.

9

5175733

SHIELD

1шт.

10

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

6шт.

11

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

12

12164714

NUT,M10 x 1.25, Cl 8

2шт.

13

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

14

5178325

SPACER,15mm ID x 30mm OD x 18mm L

2шт.
