Запчасти Case IH JX1070C (1.33.2/02[01]) - (VAR.139-281) NA - 8X8 (30 KM/H) P.SHUTT. W/OIL COOLER - CAPS AND SOLENOID VALVE (04) - FRONT AXLE & STEERING

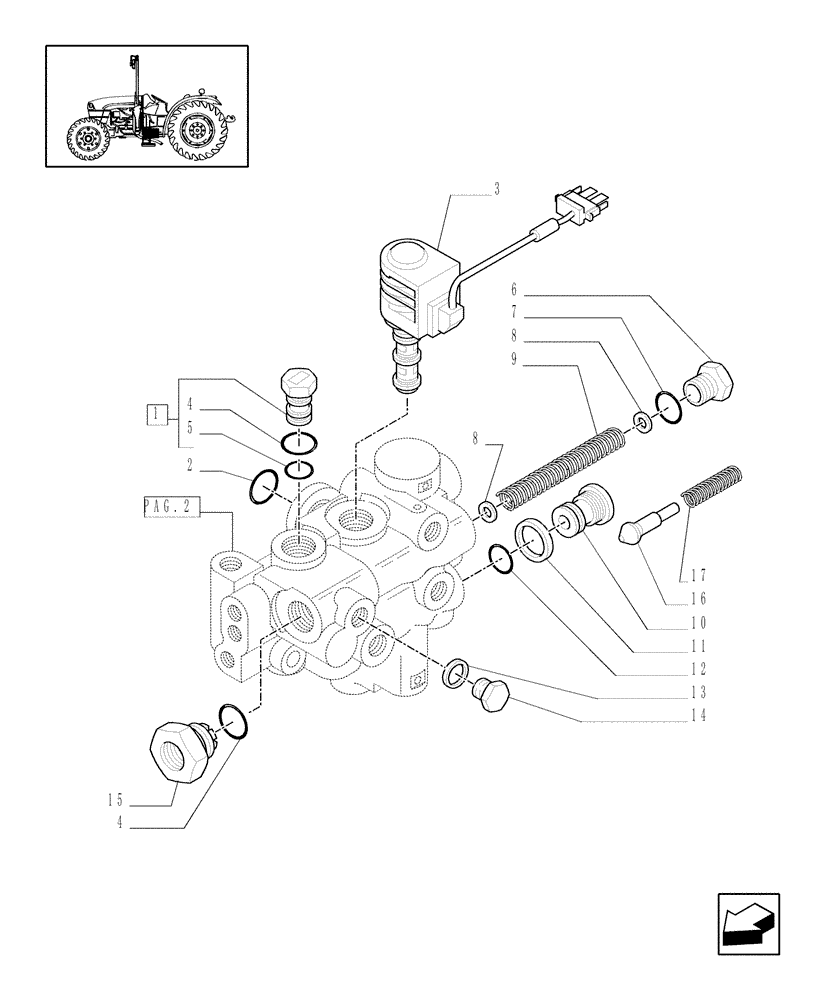

Схема запчастей Case IH JX1070C - (1.33.2/02[01]) - (VAR.139-281) NA - 8X8 (30 KM/H) P.SHUTT. W/OIL COOLER - CAPS AND SOLENOID VALVE (04) - FRONT AXLE & STEERING
4
10
8
4
17
9
15
1
pag.2
2
16
12
11
5
6
14
3
8
13
7

Артикул

Название

Примечание

Количество

1

5154967

PLUG,Hex R0.2

2WD

1шт.

2

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

2WD

1шт.

3

5193152

SOLENOID VALVE

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2WD

2шт.

5

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2WD

1шт.

6

5176204

PLUG,M18 x 1.5

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

13550101

WASHER

2шт.

9

5157119

SPRING,11.5mm x 127mm

1шт.

10

5168332

PLUG,M20 x 1.5

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

12

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

14

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

15

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

16

5176227

PLUNGER,5.5mm ID x 15mm OD x 43mm L

1шт.

17

5114402

SPRING,Compression, 11mm OD x 35.5mm L

1шт.

Выбрано товаров: 17
