(1.32.1/06) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - BEVEL GEAR PAIR

Запчасти Case IH JX1070C (1.32.1/06) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - BEVEL GEAR PAIR (03) - TRANSMISSION

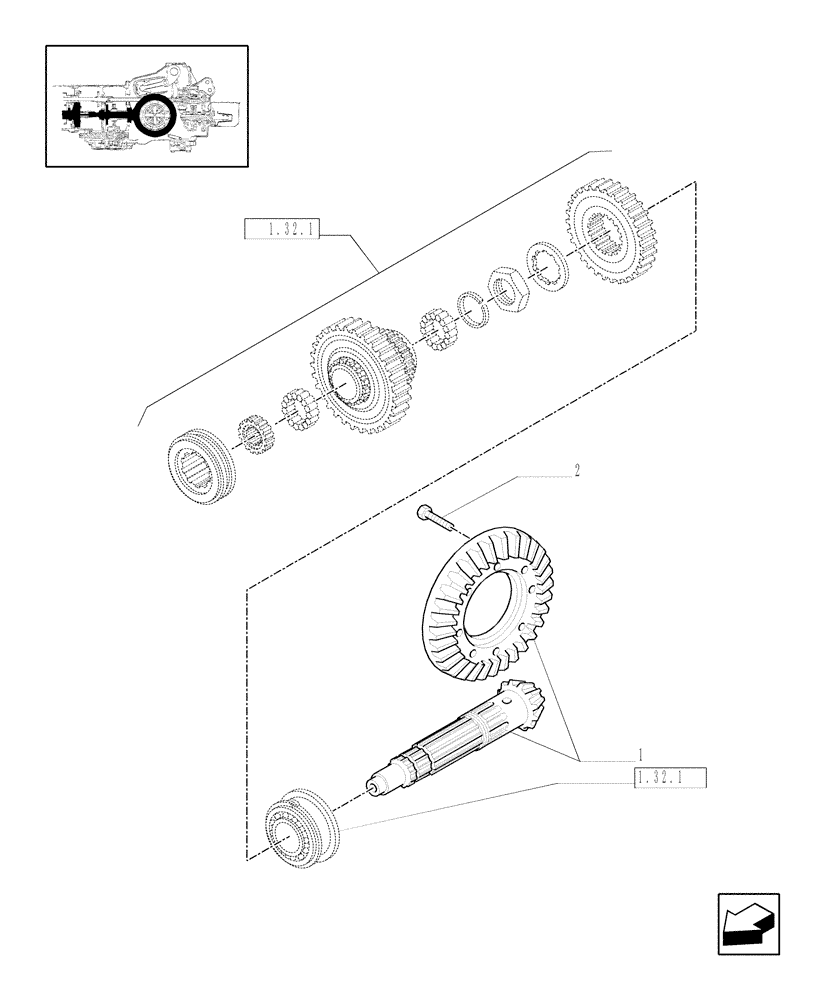

Схема запчастей Case IH JX1070C - (1.32.1/06) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - BEVEL GEAR PAIR (03) - TRANSMISSION
1.32.1
2
1
1.32.1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5173141

BEVEL GEAR

RATIO 11/39

1шт.

2

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

Выбрано товаров: 2
