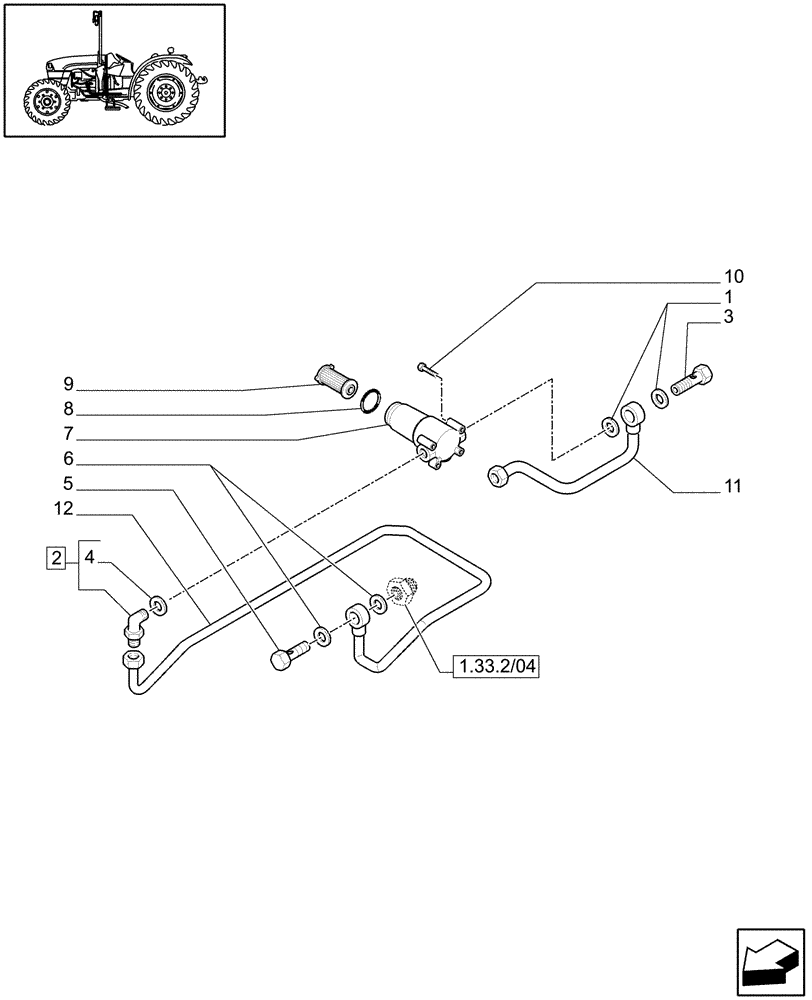

Запчасти Case IH JX1070C (1.28.8/07) - (VAR.275-275/1) HI-LO GEAR LUBRICATION SYSTEM - OIL FILTER, UNIONS (03) - TRANSMISSION

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

Incl. 15

1шт.

3

44909408

BANJO BOLT

M22

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

7

84256436

HYDRAULIC OIL FILTER

ASSY, Incl. 8, 9

1шт.

8

5194880

O-RING KIT

1шт.

9

5194879

ELEMENT

1шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

11

5193553

RIGID TUBE

Front

1шт.

12

5193388

RIGID TUBE

Rear

1шт.

9

5194879

ELEMENT

1шт.
