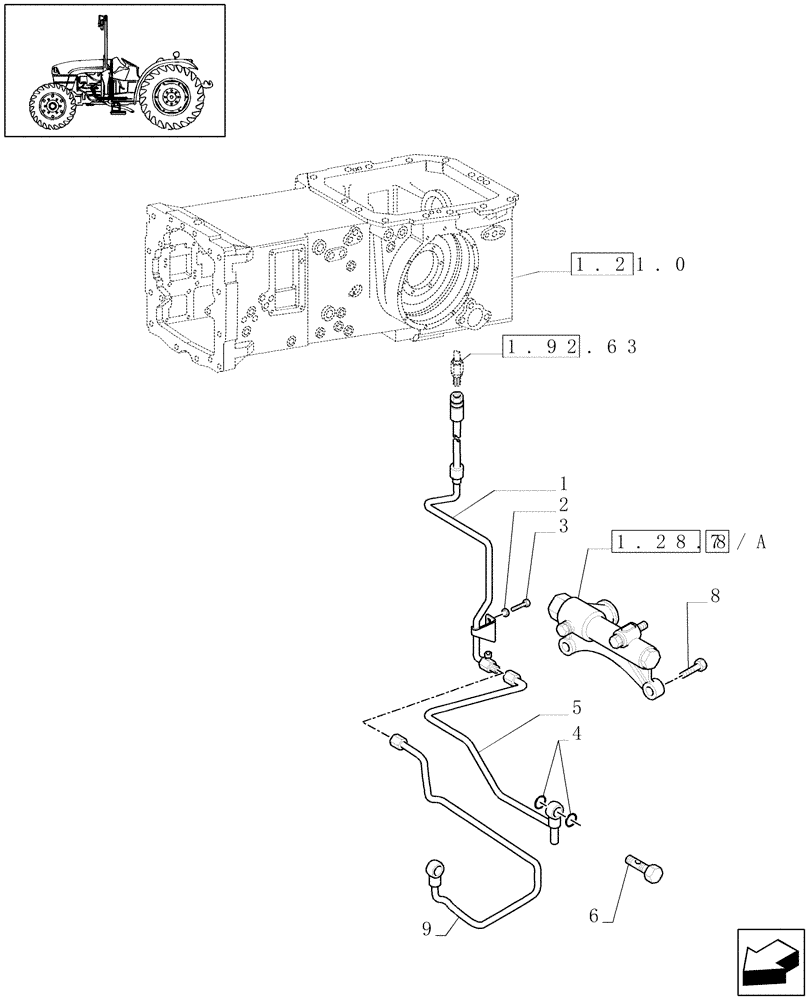

Запчасти Case IH JX1070C (1.28.8[01A]) - GEAR LUBRICATION SYSTEM - D5723 (03) - TRANSMISSION

1

5183798

RIGID TUBE

FRONT

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

5

5186423

RIGID TUBE

REAR

1шт.

6

5188580

BANJO BOLT,Hex, M12/18 x 1.5

M18x34

1шт.

7

5186117

HYDRAULIC VALVE

1шт.

8

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

5188548

RIGID TUBE

1шт.

With VAR.826

1шт.
