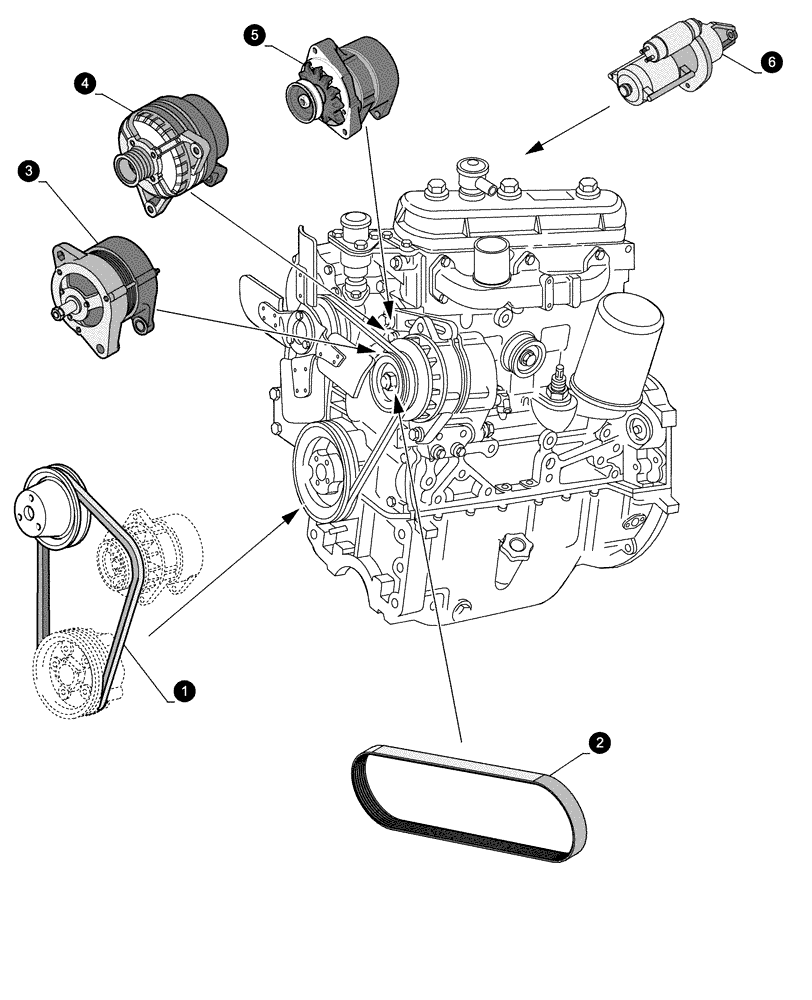

Запчасти Case IH JX1070C (0.05.4[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - GENERAL
![Схема запчастей Case IH JX1070C - (0.05.4[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - GENERAL](https://partsell.ru/storage/images/caseih/5370330.png)
№
Артикул
Название
Примечание
Количество
1
98473705
BELT,1190.00 mm L
Main Drive
1шт.
Valid with X1060C-TRACTOR, JX1070C-TRACTOR, JX1075C-TRACTOR Models
1шт.
1
4796328
BELT,SET OF 2 BELTS
Main Drive
1шт.
Valid with X1060C-TRACTOR, JX1070C-TRACTOR, JX1075C-TRACTOR Models
1шт.
1
K68073
V-BELT
Main Drive
1шт.
Valid with X1060C-TRACTOR, JX1070C-TRACTOR, JX1075C-TRACTOR Models
1шт.
2
5154152
BELT,13.00 mm W x 875.00 mm L
A/C Compressor
2шт.
Valid with X1060C-TRACTOR, JX1070C-TRACTOR, JX1075C-TRACTOR Models
1шт.
3
500322763
ALTERNATOR
On Engine
1шт.
Valid with X1060C-TRACTOR, JX1070C-TRACTOR, JX1075C-TRACTOR Models
1шт.
4
47134023
ALTERNATOR
On Engine
1шт.
Valid with X1060C-TRACTOR, JX1070C-TRACTOR, JX1075C-TRACTOR Models
1шт.
5
47134024
ALTERNATOR
On Engine
1шт.
Valid with X1060C-TRACTOR, JX1070C-TRACTOR, JX1075C-TRACTOR Models
1шт.
6
5801441816
STARTER MOTOR,12V, 2.6kW
On Engine
1шт.
Valid with X1060C-TRACTOR, JX1070C-TRACTOR, JX1075C-TRACTOR Models
1шт.
