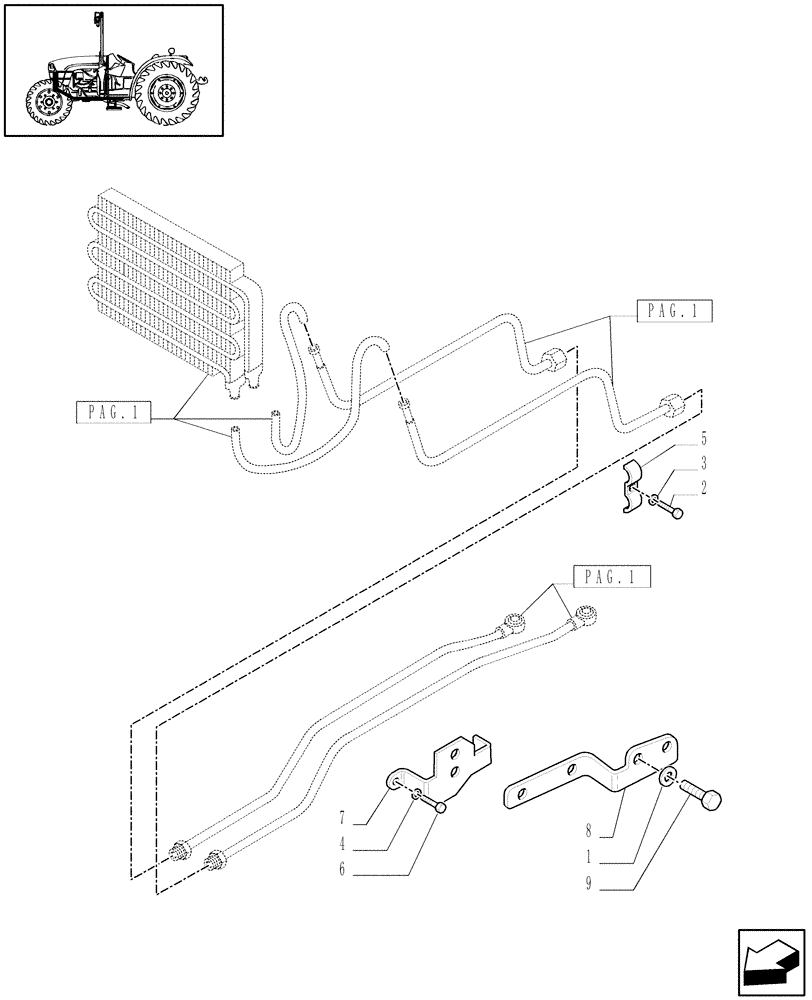

Запчасти Case IH JX1070C (1.27.7/08[02]) - (VAR.064) HYDRAULIC VALVE FOR COMBO COOLER FOR 4WD ELECTRO-HYDRAULIC COUPLING - BRACKETS (03) - TRANSMISSION

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

2

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

1шт.

3

10516474

LOCK WASHER

1шт.

4

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

5

5177880

CLAMP,14mm ID

1шт.

6

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

7

47134203

BRACKET

1шт.

8

5180410

BRACKET

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.
