(1.27.3[02]) - (VAR.445) RICE VERSION FOR POWER SHUTTLE & HI-LO - COVER AND CAPS

Запчасти Case IH JX1070C (1.27.3[02]) - (VAR.445) RICE VERSION FOR POWER SHUTTLE & HI-LO - COVER AND CAPS (03) - TRANSMISSION

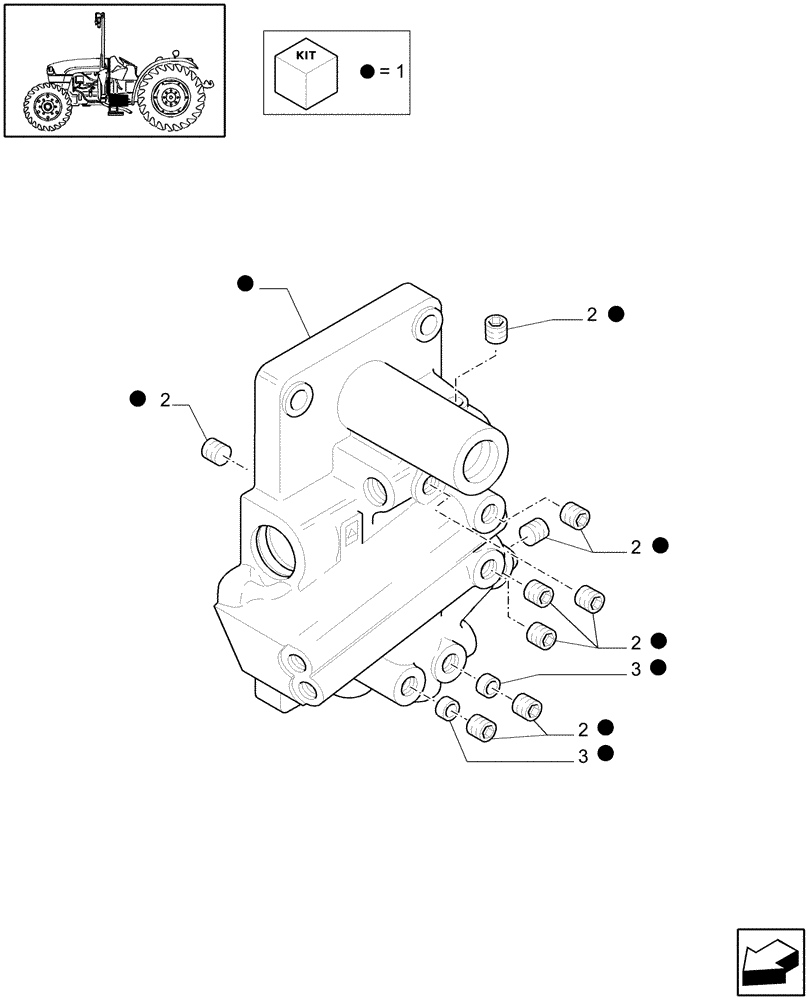

Схема запчастей Case IH JX1070C - (1.27.3[02]) - (VAR.445) RICE VERSION FOR POWER SHUTTLE & HI-LO - COVER AND CAPS (03) - TRANSMISSION
3
1
1
2
2
1
1
1
1
1
2
2
3
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126468

COVER

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

9шт.

3

5173959

HYD CONNECTOR

2шт.

Выбрано товаров: 3
