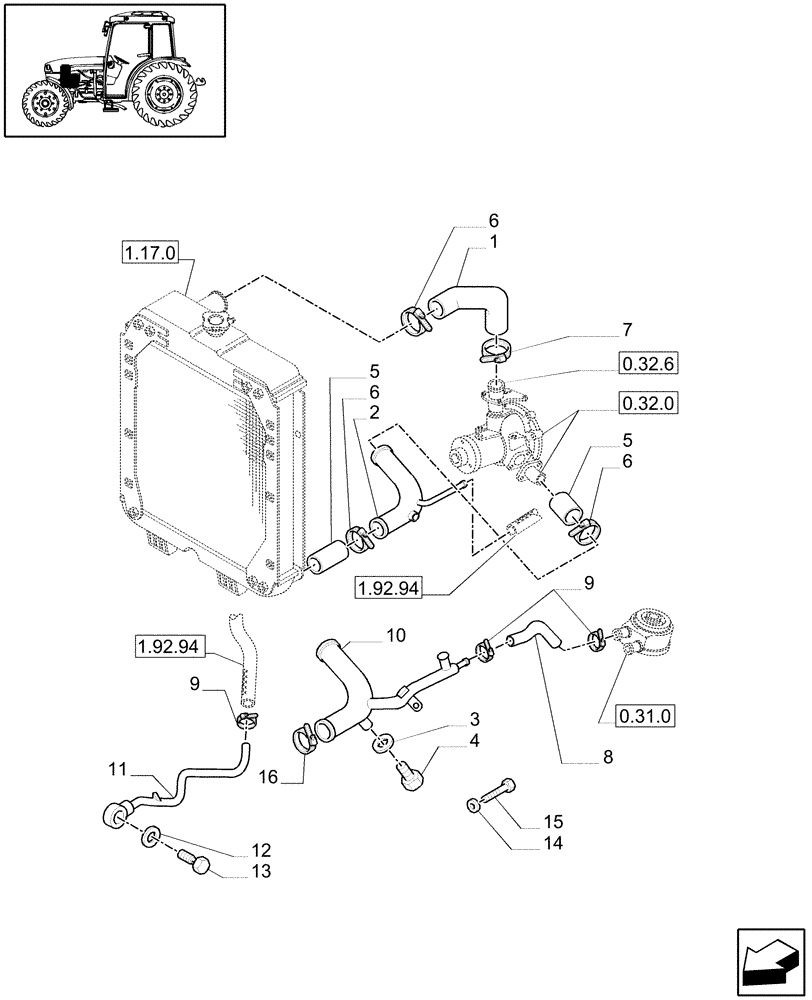

Запчасти Case IH JX1070C (1.17.2[01]) - RADIATOR HOSES - W/CAB (02) - ENGINE EQUIPMENT

1

5176675

HOSE,38.00 mm ID, 45.00 mm ID x 160.00 mm

1шт.

2

5186369

RIGID TUBE

JX1060C

1шт.

3

4858609

WASHER,Brass

1шт.

4

10300714

PLUG,M16 x 1.5 x 14

1шт.

5

596152

RADIATOR HOSE,37.00 mm ID x 80.00 mm

2шт.

6

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

5шт.

7

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

8

5187343

HOSE,16.00 mm ID x 92.00 mm

JX1070C, JX1075C

1шт.

9

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

JX1070C, JX1075C

5шт.

10

5187324

RIGID TUBE

JX1070C, JX1075C

1шт.

11

47129306

RIGID TUBE

1шт.

12

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

2шт.

13

10182614

BANJO BOLT,M20 x 1.5 x 36mm

1шт.

14

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

15

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

16

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

1шт.
