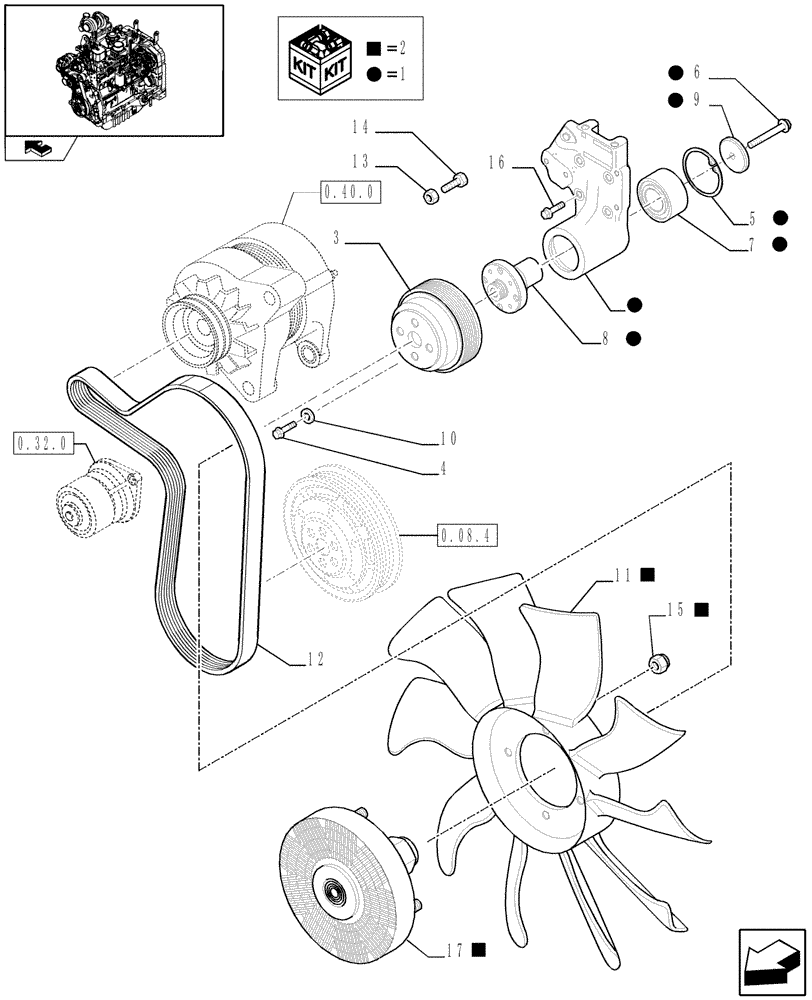

Запчасти Case IH FARMALL 95U (0.34.5/01) - ENGINE WITH VISCOSTATIC FAN - FAN DRIVE (VAR.330174) (01) - ENGINE

1

2854422

HUB

ASSY

1шт.

2

87623309

BLOWER

1шт.

3

87519548

PULLEY,132mm OD

1шт.

4

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

5

2852171

SNAP RING,M68.2, Ext

1шт.

6

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

M10 x 1.5 x 70

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

2853705

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

10

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

11

87624554

BLOWER

1шт.

12

47131754

V-BELT,28.48 mm W x 1381.00 mm L, 8 Ribs

1шт.

13

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

14

87302310

HEX SOC SCREW,M10 x 1.5 x 80mm

1шт.

15

86528579

NUT,M8 x 1.25

4шт.

16

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

4шт.

17

87338809

HUB

1шт.
