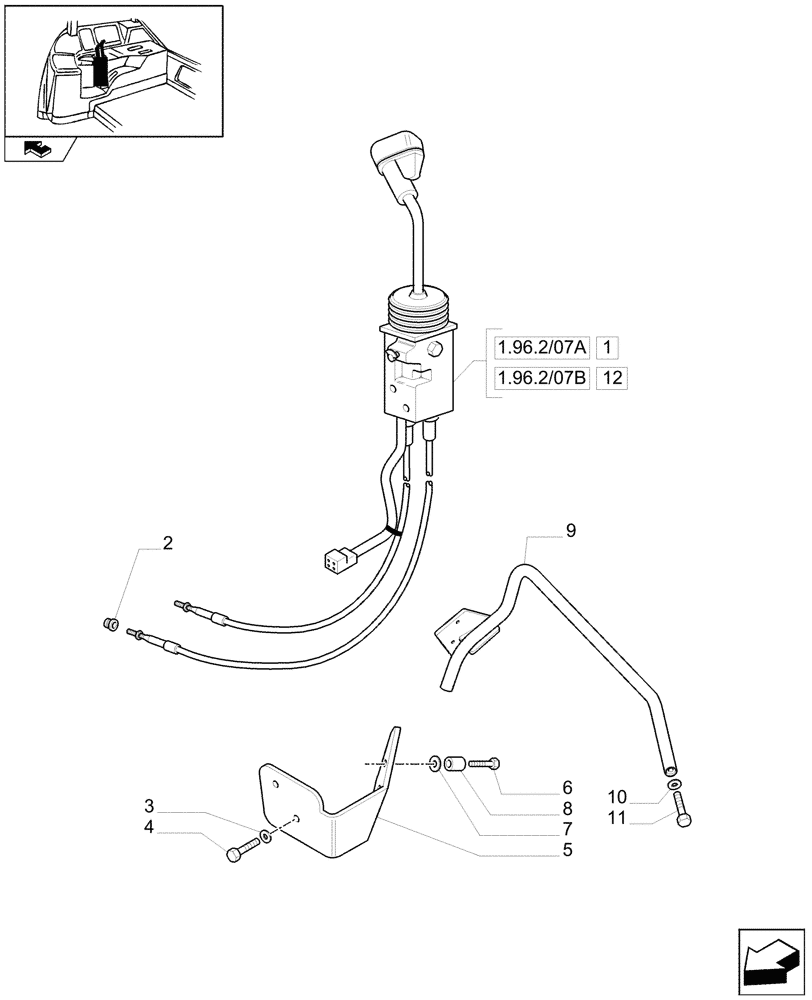

Запчасти Case IH FARMALL 95U (1.96.2/07) - TWO MID-MOUNT VALVES FOR REAR CONTROL VALVES - JOYSTICK AND SUPPORT - W/CAB (VAR.330186-330386) (10) - OPERATORS PLATFORM/CAB

1

87305800

JOYSTICK

, Serial Range: -C7237

1шт.

2

10399180

RING,12mm ID x 24mm OD x 11mm Thk

12x2.5

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

16044827

SCREW,M8 x 80mm, Cl 8.8

2шт.

5

87311156

BRACKET

W/CAB

1шт.

6

11107424

BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

7

12642401

WASHER,M10 x 20 x 1

2шт.

8

82003698

SPACER,11mm ID x 20mm OD x 30mm L

2шт.

9

87306007

HANDLE

RH, L/CAB

1шт.

10

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

11

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

84402281

JOYSTICK

, Start Serial: D7237

1шт.
