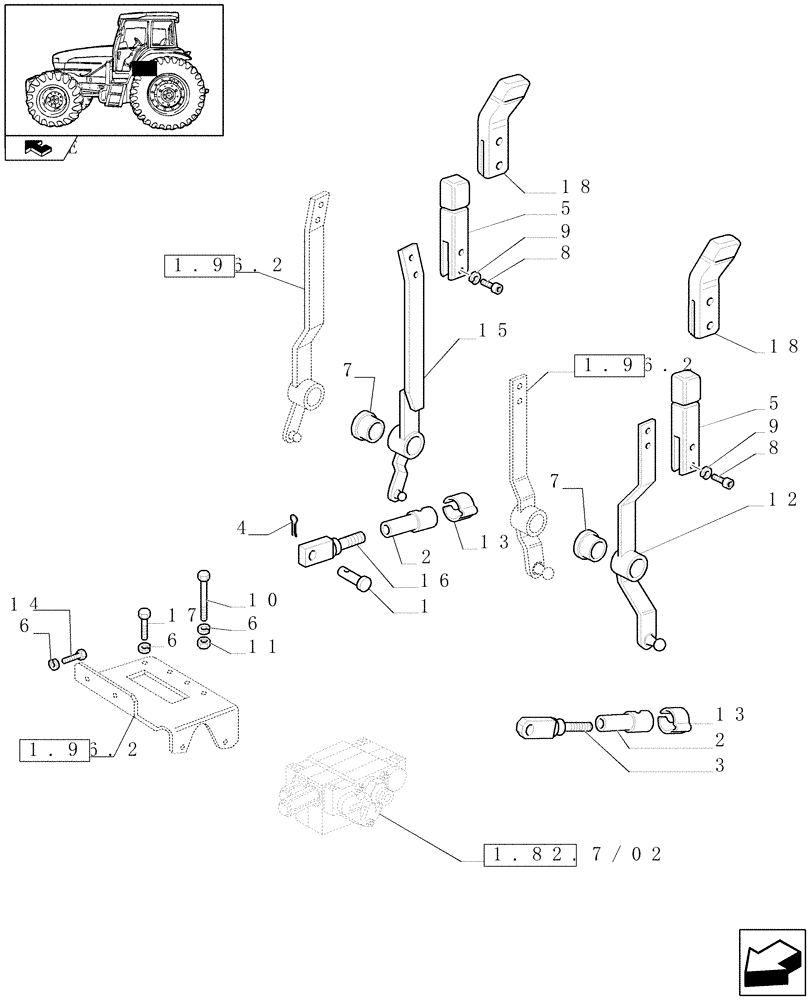

Запчасти Case IH FARMALL 95U (1.96.2/02) - 1 DOUBLE EFFECT AND 1 W/ FLOAT & AUTOM. CUTOUT DISTRIBUTORS - CONTROL LEVERS (VAR.330356) (10) - OPERATORS PLATFORM/CAB

1

5126824

PIN,6.4mm OD x 21.5mm L

4шт.

2

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

4шт.

3

5169149

ROD-TIP

L/Cab, 70MM

2шт.

4

10734304

COTTER PIN,M2 x 18

4шт.

5

5126312

KNOB

W/Cab, Serial Range: -C6013

2шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

7

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21 x 27 x 22

1шт.

8

14302928

BOLT,M4 x 0.7 x 10mm, Cl 8.8

M4 x 10

2шт.

9

10569074

LOCK WASHER

D=4

2шт.

10

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

3шт.

12

5192514

LEVER

L/Cab

1шт.

11

12164714

NUT,M10 x 1.25, Cl 8

3шт.

13

10125574

CLAMP,13mm

4шт.

14

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

15

47128663

LEVER

W/Cab

1шт.

16

5126037

ROD-TIP

W/Cab, 42MM

2шт.

17

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

18

5126318

KNOB,Black

Black, W/Cab, Start Serial: D6013

2шт.
