Запчасти Case IH FARMALL 95U (1.94.2/01[02]) - AIR CONDITIONING - PIPES - C6273 (VAR.330641-331641) (10) - OPERATORS PLATFORM/CAB

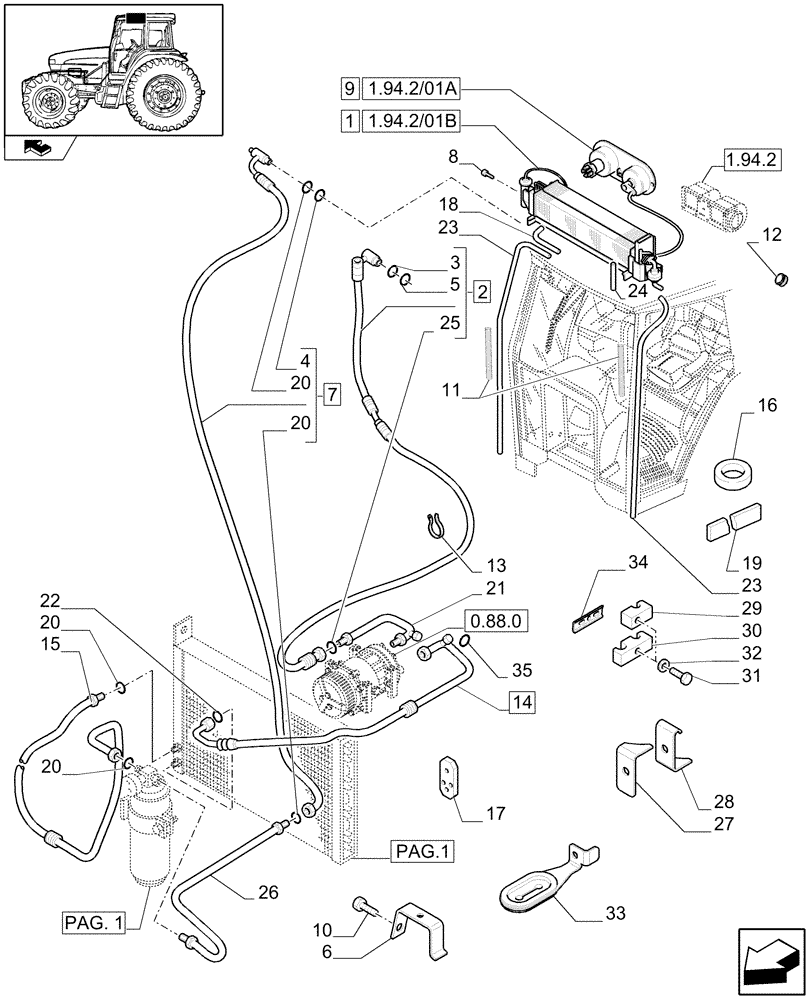

Схема запчастей Case IH FARMALL 95U - (1.94.2/01[02]) - AIR CONDITIONING - PIPES - C6273 (VAR.330641-331641) (10) - OPERATORS PLATFORM/CAB
31
20
8
4
32
20
26
20
23
33
18
27
20
6
0.88.0
15
25
home
pag.1
21
11
30
28
10
12
9
22
19
1
1.94.2
1.94.2/01a
5
23
3
7
24
13
29
34
2
16
1.94.2/01b
pag. 1
14
35
17

Артикул

Название

Примечание

Количество

1

47126948

AIR CONDITIONER

ASSY

1шт.

2

47129953

HOSE

Evaporator-Compressor, Serial Range: -C6273

1шт.

2

84163950

A/C HOSE

, Start Serial: D6273

1шт.

3

14453383

O-RING,15.6mm ID x 1.78mm Width

1шт.

4

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

5

14450783

O-RING,13.4mm ID x 2.4mm Width

1шт.

6

87603198

BRACKET

1шт.

7

87696260

FLEXIBLE HOSE

Filter, Evaporator, Serial Range: -C6273

1шт.

7

84163948

RIGID TUBE,10 mm OD x 100 mm L

, Start Serial: D6273

1шт.

8

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

2шт.

9

47126949

CONTROL PANEL

1шт.

10

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

11

5186521

SPRING

4шт.

12

10397480

GROMMET,14mm ID x 20mm Groove D x 27mm OD

14 x 27

2шт.

13

14560287

CABLE TIE,207.00mm L

COLLAR

4шт.

14

87372462

RIGID TUBE,12 mm OD x 1240, 179.3 mm L

Compressor-Condensor, Incl. O-Ring, W/Valve

1шт.

VAR.331641

1шт.

14

87372250

RIGID TUBE,12 mm OD x 1240, 179.3 mm L

Compressor-Condensor, Incl. O-Ring, L/Valve

1шт.

VAR.330641

1шт.

15

87696257

A/C HOSE

Condensor-Dryer, Incl. O-Ring

1шт.

16

5190097

INSULATOR

2шт.

17

5198387

BRACKET

1шт.

18

5190426

TUBE

1шт.

19

5190525

BAND

1шт.

20

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

4шт.

21

87603194

HYD CONNECTOR

Suction Connector

1шт.

22

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

23

5186745

HOSE,10.00 mm ID x 1460.00 mm

Drain

2шт.

24

5190428

FLEXIBLE HOSE

7 x 12 x 188

1шт.

25

14453283

O-RING,14mm ID x 1.78mm Width

3шт.

26

87688310

RIGID TUBE,10 mm ID

1шт.

27

87693859

BRACKET

RH

1шт.

28

87693860

BRACKET

LH

1шт.

29

87532290

BRACKET

1шт.

30

87694267

BLOCK

1шт.

31

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

32

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

33

87687284

BRACKET

1шт.

34

82004584

CLAMP

1шт.

35

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

Выбрано товаров: 40
