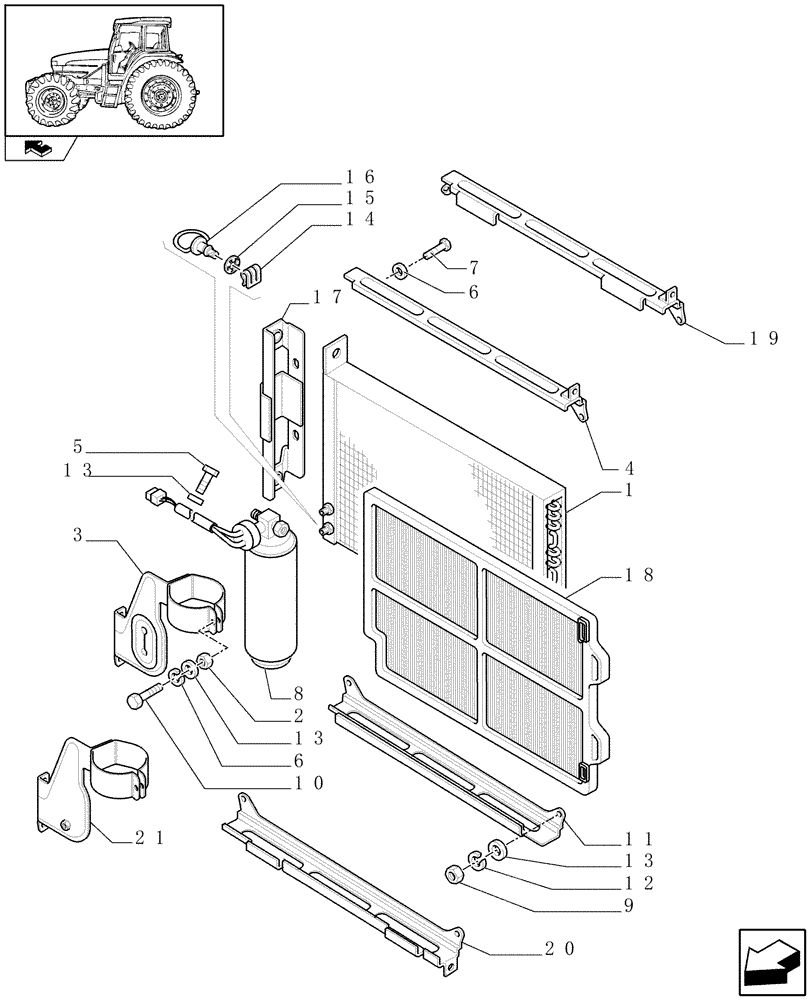

Запчасти Case IH FARMALL 95U (1.94.2/01[01]) - AIR CONDITIONING - RADIATOR & FILTER (VAR.330641-331641) (10) - OPERATORS PLATFORM/CAB

1

87542953

CONDENSER

1шт.

2

15896214

NUT,M6, Cl 8

1шт.

3

87675595

BRACKET

, Serial Range: -C6273

1шт.

4

87655931

SUPPORT

Upper, Serial Range: -C6010

1шт.

5

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

7

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

8

5165615

RECEIVER-DRYER

Dryer

1шт.

Incl. High Pressure Switch

1шт.

9

16100814

NUT,M8, Cl 8, DAC

1шт.

10

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

11

87734950

SUPPORT

Lower, Serial Range: -C6010

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

13

13550314

WASHER

D=8x18

4шт.

14

82004582

CLIP,Square, 25mm

1шт.

15

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

16

82005454

FASTENER,12mm OD x 16mm L

1шт.

16

87614935

STUD,6mm OD

, Start Serial: D6010

1шт.

17

87380223

SUPPORT

1шт.

18

87732959

AIR FILTER

1шт.

19

87747292

SUPPORT

, Start Serial: D6010

1шт.

20

87747294

SUPPORT

, Start Serial: D6010

1шт.

21

84144067

BRACKET

, Start Serial: D6273

1шт.
