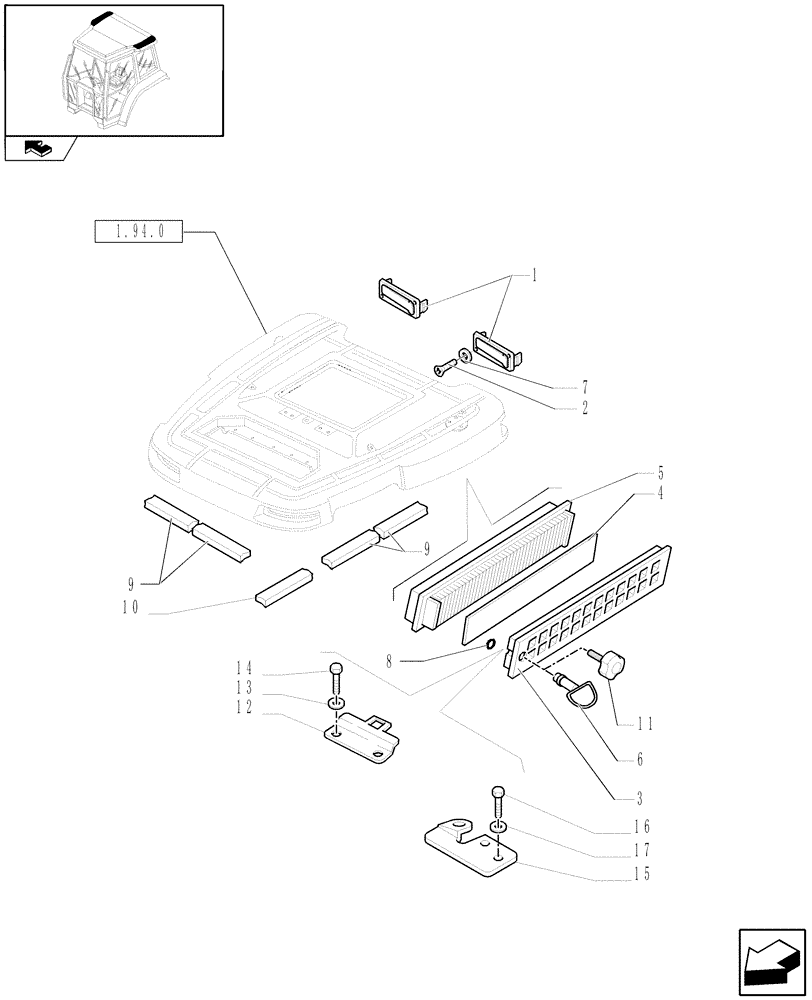

Запчасти Case IH FARMALL 95U (1.94.2[02]) - AIR FILTER - W/CAB (10) - OPERATORS PLATFORM/CAB

1

82007656

DIFFUSER

2шт.

2

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

10шт.

3

81871634

SUPPORT

2шт.

4

82033107

AIR FILTER

2шт.

5

5196842

CAB FILTER

2шт.

6

5155778

KNOB

2шт.

7

12642804

WASHER,4.15mm ID x 12mm OD x 1mm Thk

10шт.

8

11087776

CIRCLIP,Ext., M6, BLO

2шт.

9

82004371

SEAL,85mm L

10 x 20 x 155

4шт.

9

82007727

FOAM INSULATION,20mm W x 600mm L x 15mm Thk

25 x 20 x 60

2шт.

10

47131658

INSULATOR

12 x 15 x 136

1шт.

11

87342710

KNOB

2шт.

12

82003520

BRACKET

2шт.

13

13276117

SCREW,Pozidriv Pan Hd, M6 x 14mm, Cl 5.8, Full Thd

4шт.

14

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

15

47123941

BRACKET

RH

1шт.

15

47123942

BRACKET

LH

1шт.

16

13276124

SCREW,Pozidriv Pan Hd, M6 x 14mm, Cl 8.8

6шт.

17

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.
